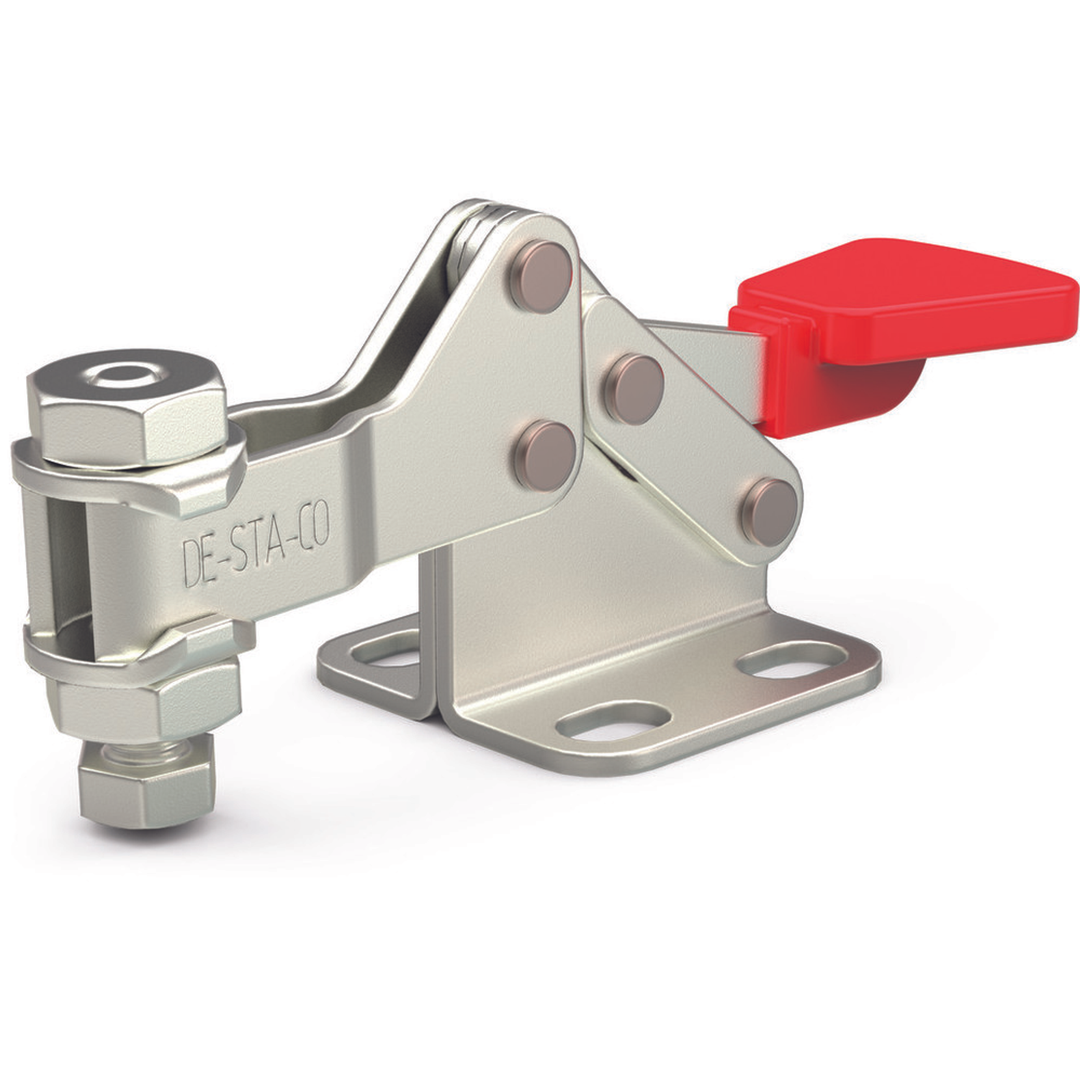

206-SS - Stainless Steel Flanged Base, Low U-Bar

Visit Product Series:

Hold Down Clamps-206

Unit View

Dimensions / Applications

  • Length (in)2.74
  • Weight (lb)0.07
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesFair/Medium
  • Application - Food ProcessingFair/Medium
  • Application - MachiningPoor/Low
  • Application - WeldingPoor/Low
  • ApplicationsAssembly; Checking Fixtures; Clamping; Closures; Food Processing; Woodworking
  • Product ApplicationCLAMPING
  • Service EnvironmentNormal

Technical Details

  • Arm Length (in)0.93
  • Clamp Arm Height (in)0.4
  • Clamp Arm Length (in)0.93
  • Height Under Clamp Arm (in)0.4
  • Maximum Holding Capacity (lbf)100
  • Supplied?No

Product Information

  • Accessories205943-M
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleFlange
  • BrandDESTACO
  • Clamp Arm StyleLow U-Bar
  • HandleHorizontal
  • Handle ColorRed
  • Product TypeHorizontal Hold-Down Toggle Clamp
  • Spindle Assembly205943
  • Spindle Included?No
