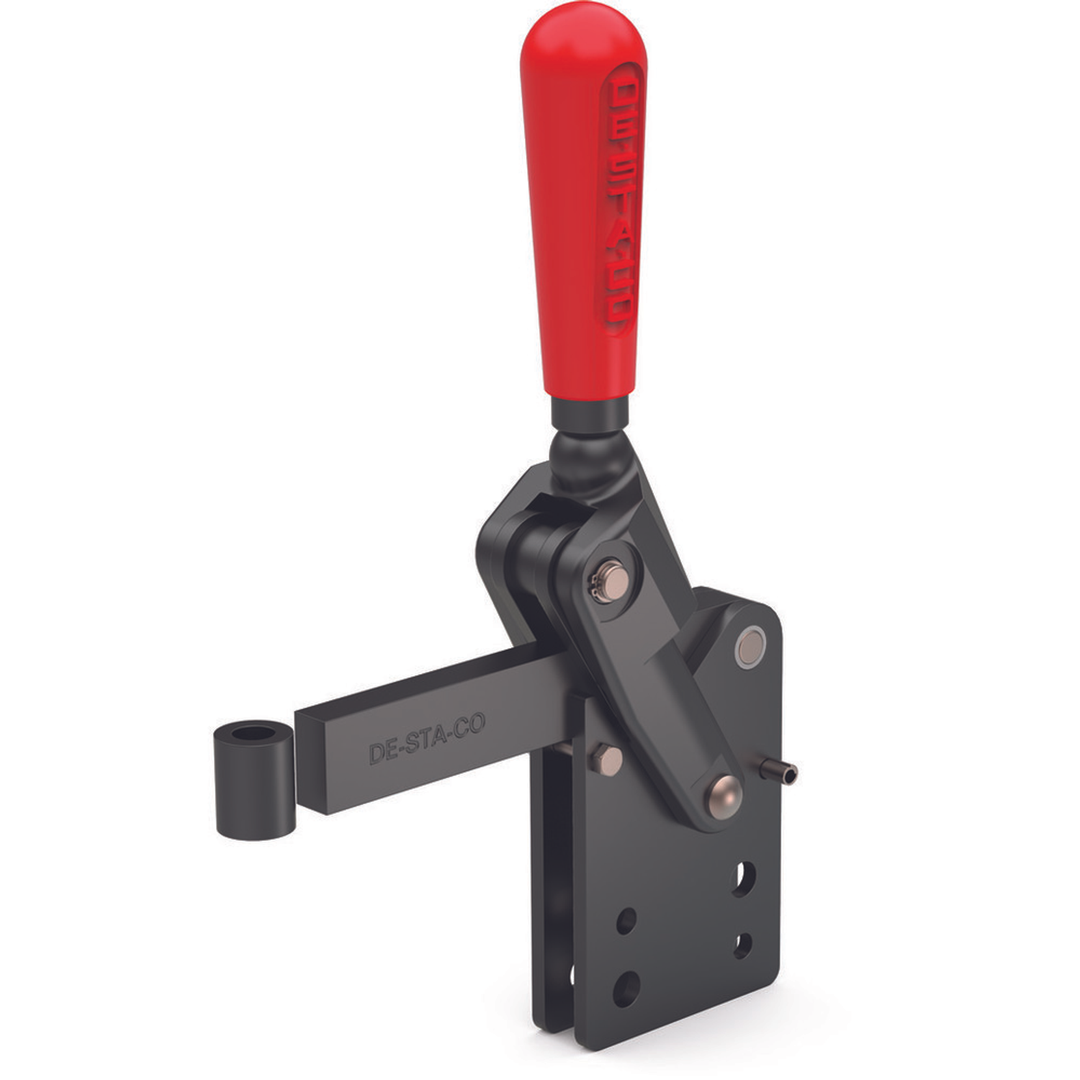

535-LB - Vertical Hold Down Clamp

Visit Product Series:

Hold Down Clamps-533-535

Unit View

Dimensions / Applications

  • Length (in)6.30 in
  • Weight (lb)4.08 lb
  • Width (in)2.13 in
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesExcellent/High
  • Application - Food ProcessingNot Recommended
  • Application - MachiningPoor/Low
  • Application - WeldingExcellent/High
  • Product ApplicationCLAMPING
  • Service EnvironmentHarsh/Dirty

Technical Details

  • Clamp Arm Length (in)3.35
  • Height Under Clamp Arm (in)2.95
  • Maximum Holding Capacity (lbf)2200.0
  • Bolt Retainer535108-M
  • Supplied?No

Product Information

  • Accessories535108-M
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleStraight
  • BrandDESTACO
  • Clamp Arm StyleLong Solid Bar
  • HandleVertical
  • Handle ColorRed
  • Product TypeVertical Hold-Down Toggle Clamp
  • Spindle Included?No
  • Standard MaterialSteel
