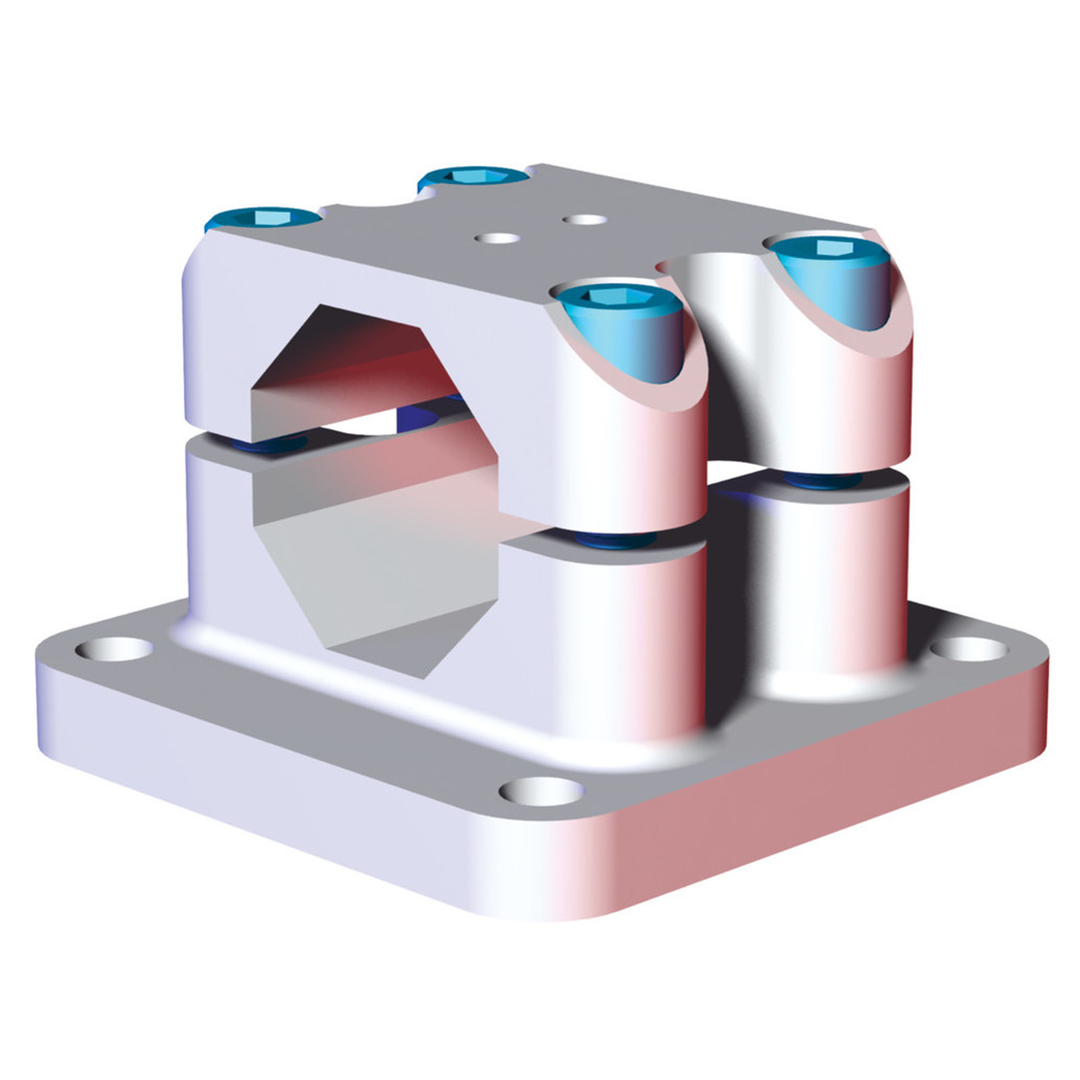

BODYBUILDER™ END FLANGE CLAMP MOUNTS FOR ROBOTIC END EFFECTORS
Visit Product Series:
Bodybuilder End Effector-Flange MountsUnit View
Dimensions / Applications
- Weight (lb)1.7
Technical Details
- Maximum Static Clamp Load (ft lb)350
- Supplied?No
- Tube Size45B
Product Information
- BrandDESTACO
- MaterialAluminum
- Product TypeMount, Mid Flange
- Spindle Included?No
