PIVOT UNITS

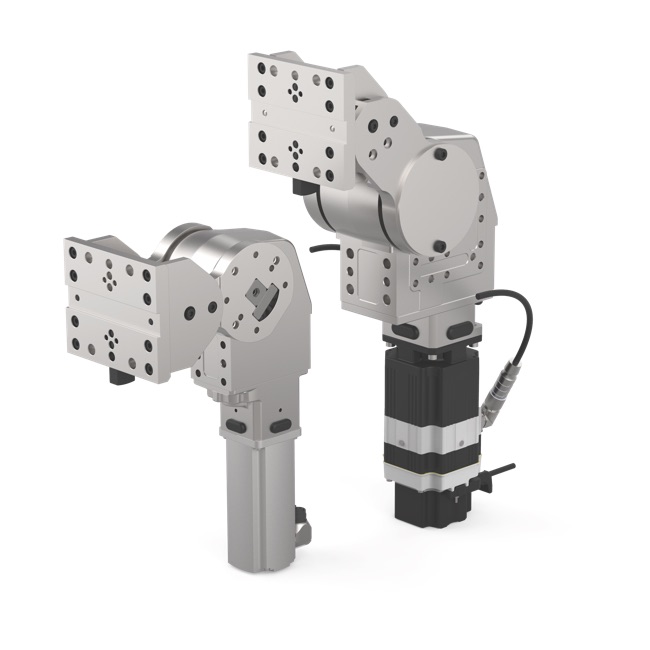

ELECTRIC PIVOT UNITS WITH PROGRAMMABLE STOP POSITIONS – 98W SERIES

The DESTACO 98W Series Electric Pivot Unit provides constant torque, multiple positions and programmable stop positions in a compact design. These units are interchangeable with common pneumatic pivot units and are available with variable arm and saddle positions for flexible operation.



Features

  • One size replaces four sizes of pneumatic pivot units. Interchangeable with common pneumatic pivot units with 125, 160, and 200 mm cylinder
  • Compatible with multiple motors
  • Variable pivot angle over 360°
  • Multiple pivot-angle positions, easily adjustable
  • Variable arm position
  • Versatile saddle mounting positions
  • Reduced weight compared to a pneumatic unit resulting in Energy savings
  • Two operating modes: Programmed setting and continuous operation
  • Fully adjustable - Programmable adjustment of pivot angle/positioning
  • Constant torque independent of opening angle
  • Early cycle release possible - with Controlled acceleration and deceleration and Self-locking

Markets

Applications

  • Fixturing and Testing
  • Welding
  • CNC Machining
