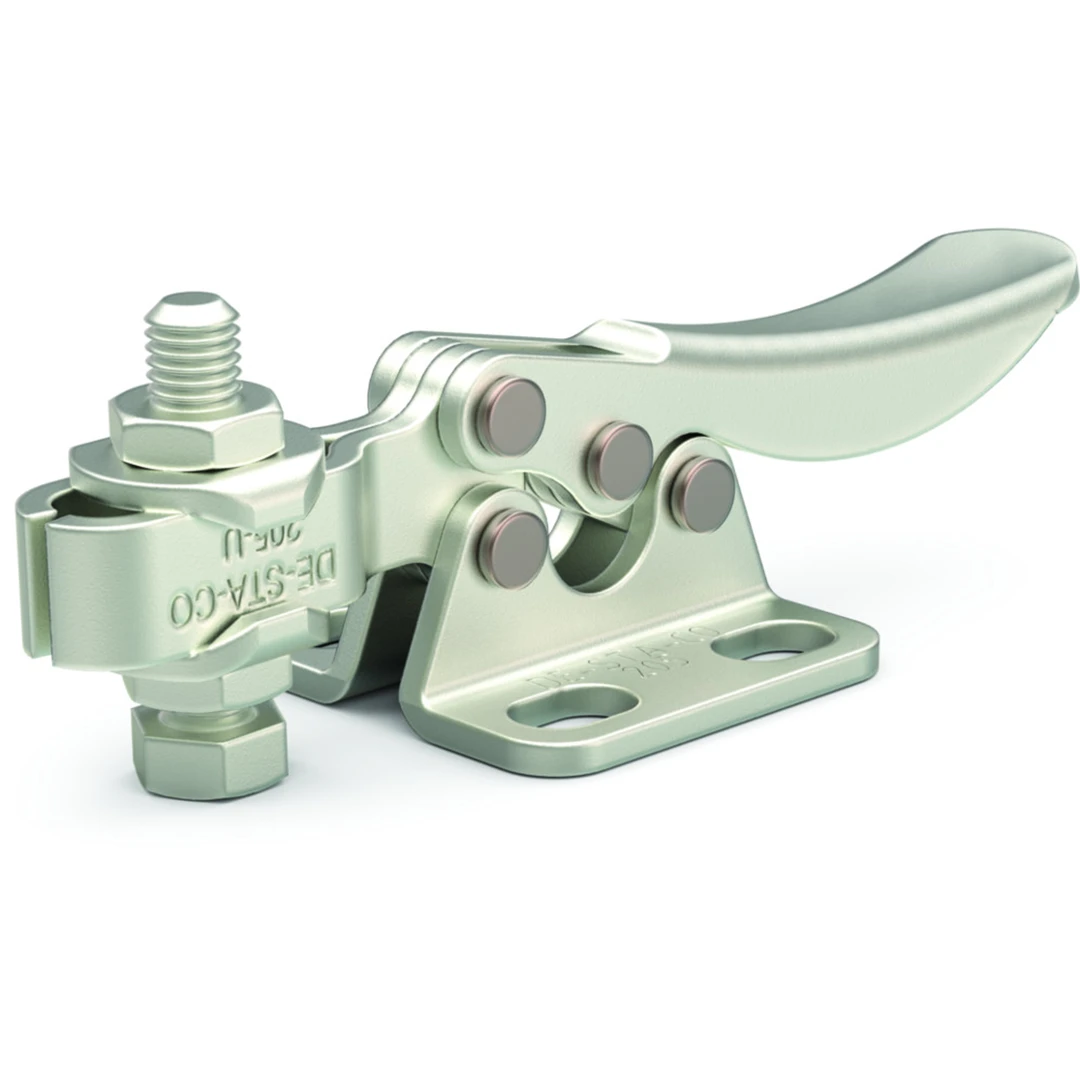

LOW-PROFILE HORIZONTAL, MANUAL HOLD-DOWN CLAMPS – 205 SERIES
Visit Product Series:
Hold Down Clamps-205Unit View
Dimensions / Applications
- Length (in)2.71
- Weight (lb)0.07
- Application - AssemblyExcellent/High
- Application - Checking FixturesExcellent/High
- Application - Food ProcessingFair/Medium
- Application - MachiningPoor/Low
- Application - WeldingPoor/Low
- ApplicationsAssembly; Checking Fixtures; Clamping; Closures; Food Processing; Woodworking
- Product ApplicationCLAMPING
- Service EnvironmentNormal
Technical Details
- Arm Length (in)0.29
- Clamp Arm Height (in)0.29
- Clamp Arm Length (in)0.76
- Height Under Clamp Arm (in)0.29
- Maximum Holding Capacity (lbf)75
- Supplied?No
Product Information
- Accessories205943-M|105906|205943-M|105906
- Accomodates Workpiece VariationNo
- Base Mounting StyleFlange
- BrandDESTACO
- Clamp Arm StyleU-Bar
- HandleHorizontal
- Handle ColorRed
- Product TypeHorizontal Hold-Down Toggle Clamp
- Spindle Assembly205943
- Spindle Included?No
