LOW-PROFILE, MANUAL HORIZONTAL HOLD-DOWN CLAMPS – 215 SERIES

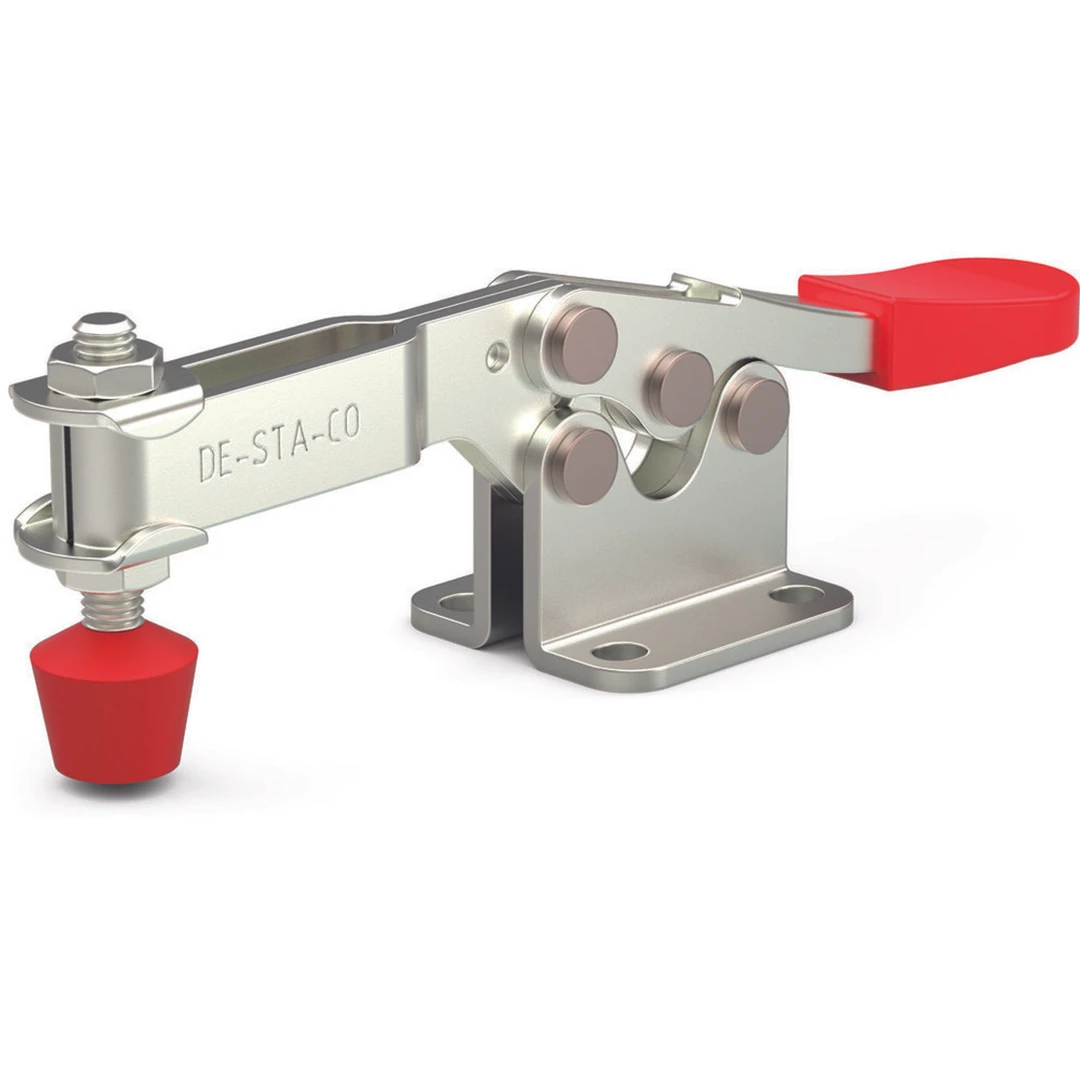

215-U - Flanged Base, U-Bar

Visit Product Series:

Hold Down Clamps-215

Unit View

Dimensions / Applications

  • Length (in)5.48
  • Weight (lb)0.33
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesExcellent/High
  • Application - Food ProcessingFair/Medium
  • Application - MachiningPoor/Low
  • Application - WeldingFair/Medium
  • ApplicationsAssembly; Checking Fixtures; Closures; Welding; Wood Working
  • Product ApplicationCLAMPING
  • Service EnvironmentNormal

Technical Details

  • Arm Length (in)2.26
  • Clamp Arm Height (in)1
  • Clamp Arm Length (in)2.26
  • Height Under Clamp Arm (in)1
  • Maximum Holding Capacity (lbf)200
  • Supplied?No

Product Information

  • Accessories202208-M|215105|205105|202208-M|215105
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleFlange
  • BrandDESTACO
  • Clamp Arm StyleU-Bar
  • HandleHorizontal
  • Handle ColorRed
  • Product TypeHorizontal Hold-Down Toggle Clamp
  • Spindle Assembly202208-M
  • Spindle Included?No
