MANUAL, HORIZONTAL HOLD-DOWN LOCKING CLAMPS – 305, 307, & 309 SERIES

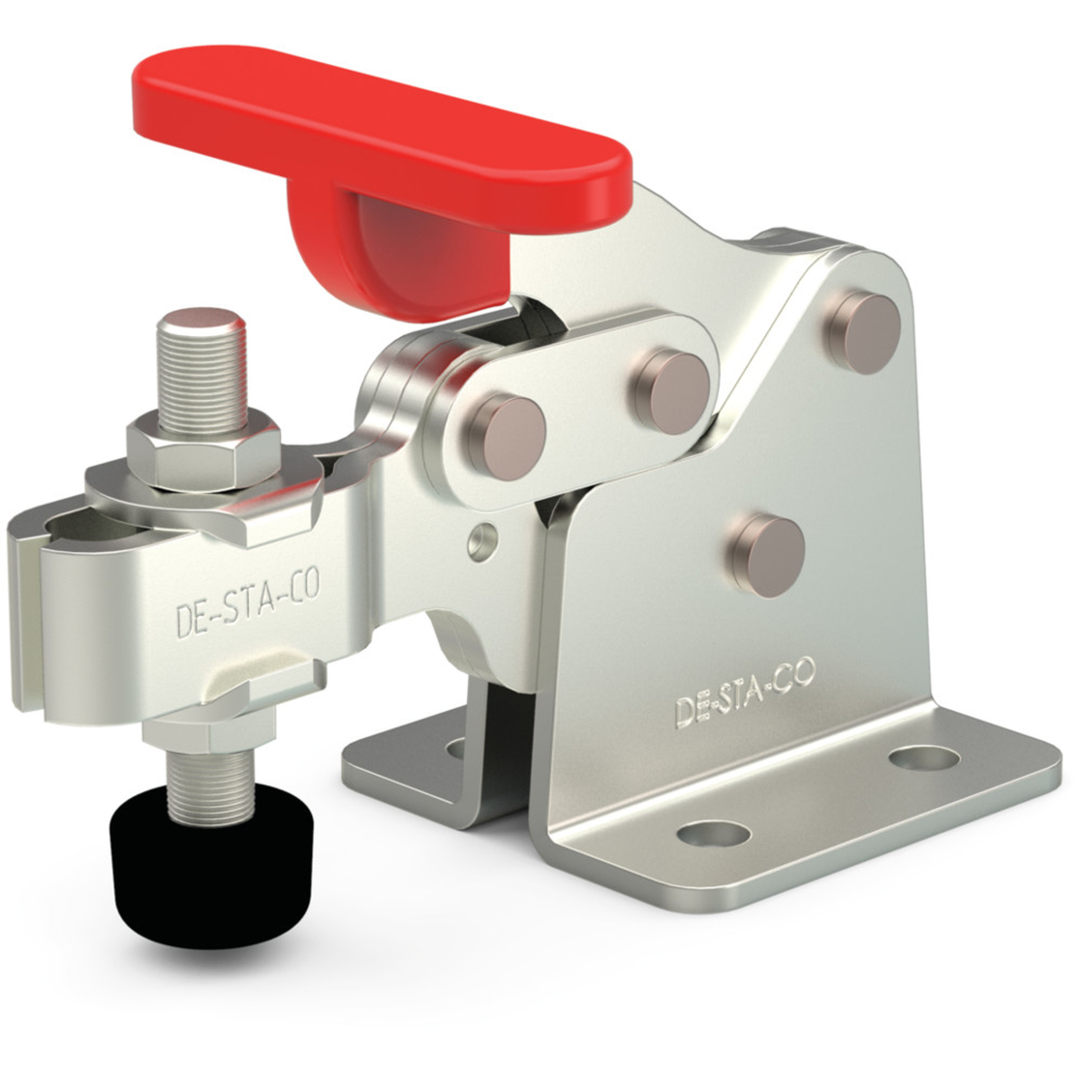

309-U - Flanged Base, U-Bar

Visit Product Series:

Hold Down Clamps-305-307-309

Unit View

Dimensions / Applications

  • Length (in)5.19
  • Weight (lb)2.87
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesFair/Medium
  • Application - Food ProcessingFair/Medium

Technical Details

  • Arm Length (in)2.68
  • Clamp Arm Height (in)1.31
  • Clamp Arm Length (in)2.68
  • Height Under Clamp Arm (in)1.31
  • Maximum Holding Capacity (lbf)750

Product Information

  • Accessories235906|235106|309208|235106
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleFlange
  • BrandDESTACO
  • Clamp Arm StyleU-Bar
