HEAVY-DUTY, MANUAL HORIZONTAL HOLD-DOWN CLAMPS – 5000 SERIES

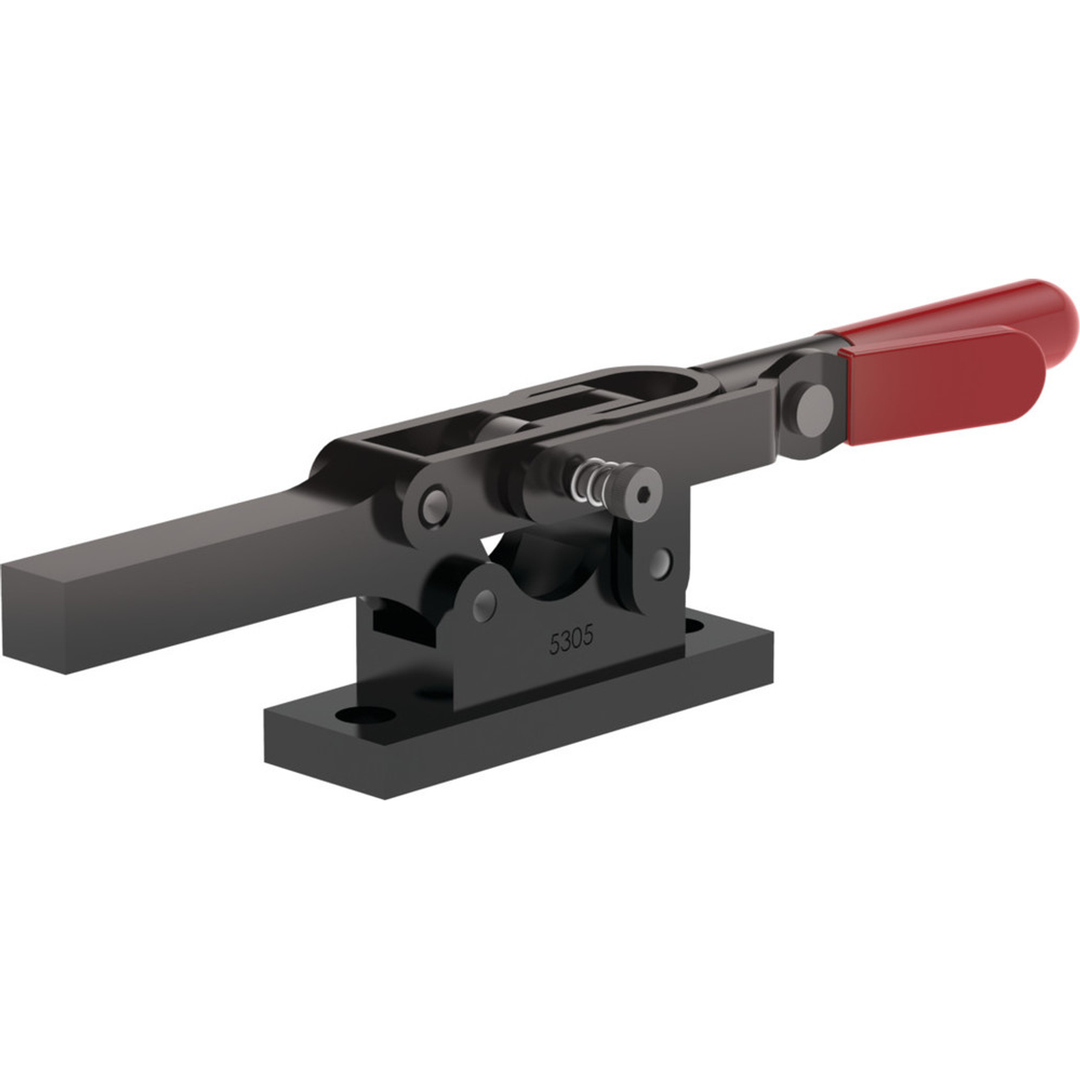

5305-BR - 5305-B with Toggle Lock Plus

Visit Product Series:

Hold Down Clamps-5000Toggle-LockHold Down Clamps 5300

Unit View

Dimensions / Applications

  • Length (in)8.36
  • Weight (lb)1.08
  • Width (in)1.84 in
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesFair/Medium
  • Application - Food ProcessingNot Recommended
  • Application - MachiningPoor/Low
  • Application - WeldingExcellent/High
  • ApplicationsAssembly; Clamping; Heavy Duty; Welding
  • Product ApplicationCLAMPING

Technical Details

  • Arm Length (in)2.75
  • Clamp Arm Height (in)0.81
  • Clamp Arm Length (in)2.75
  • Height Under Clamp Arm (in)0.81
  • Maximum Holding Capacity (lbf)600
  • Supplied?No

Product Information

  • Accomodates Workpiece VariationNo
  • Base Mounting StyleSolid
  • BrandDESTACO
  • Clamp Arm StyleSolid Bar
  • HandleHorizontal
  • Handle ColorRed
  • Product TypeHorizontal Hold-Down Toggle Clamp
  • Spindle Included?No
  • Standard MaterialSteel
  • Tip MaterialNA
