CAMCO ROLLER GEAR INDEX DRIVES WITH SHAFT OR FLANGE OUTPUT – RGD & RGS SERIES

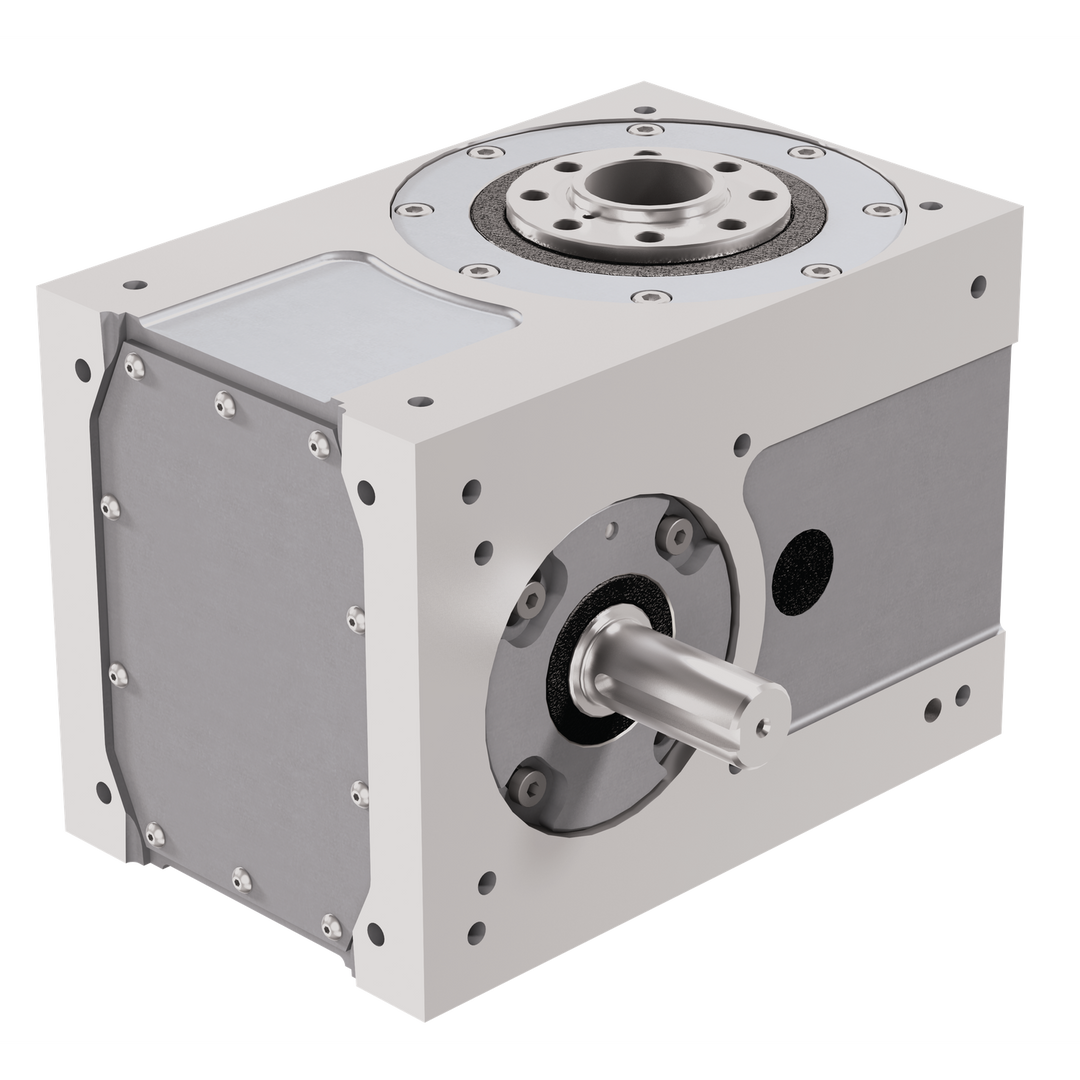

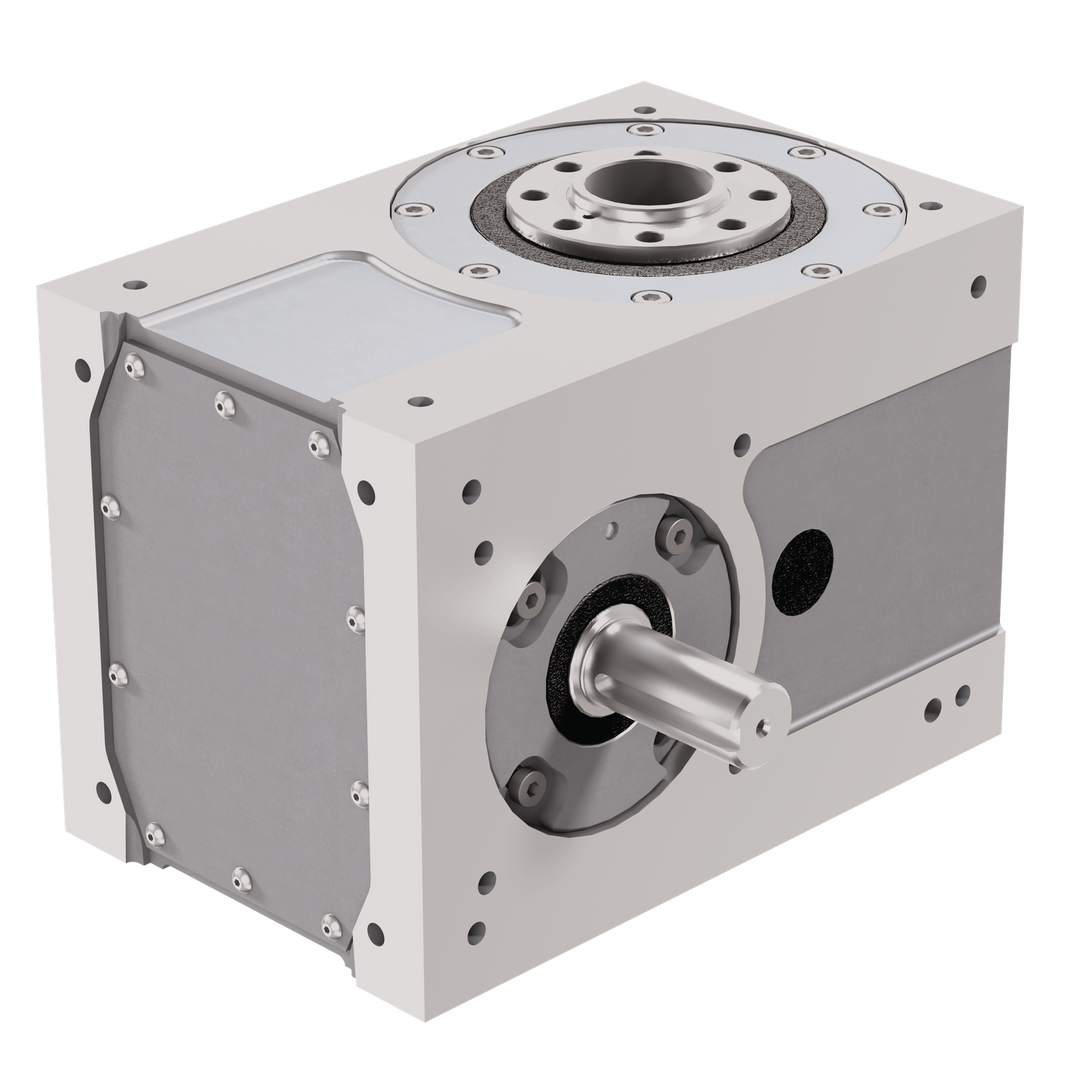

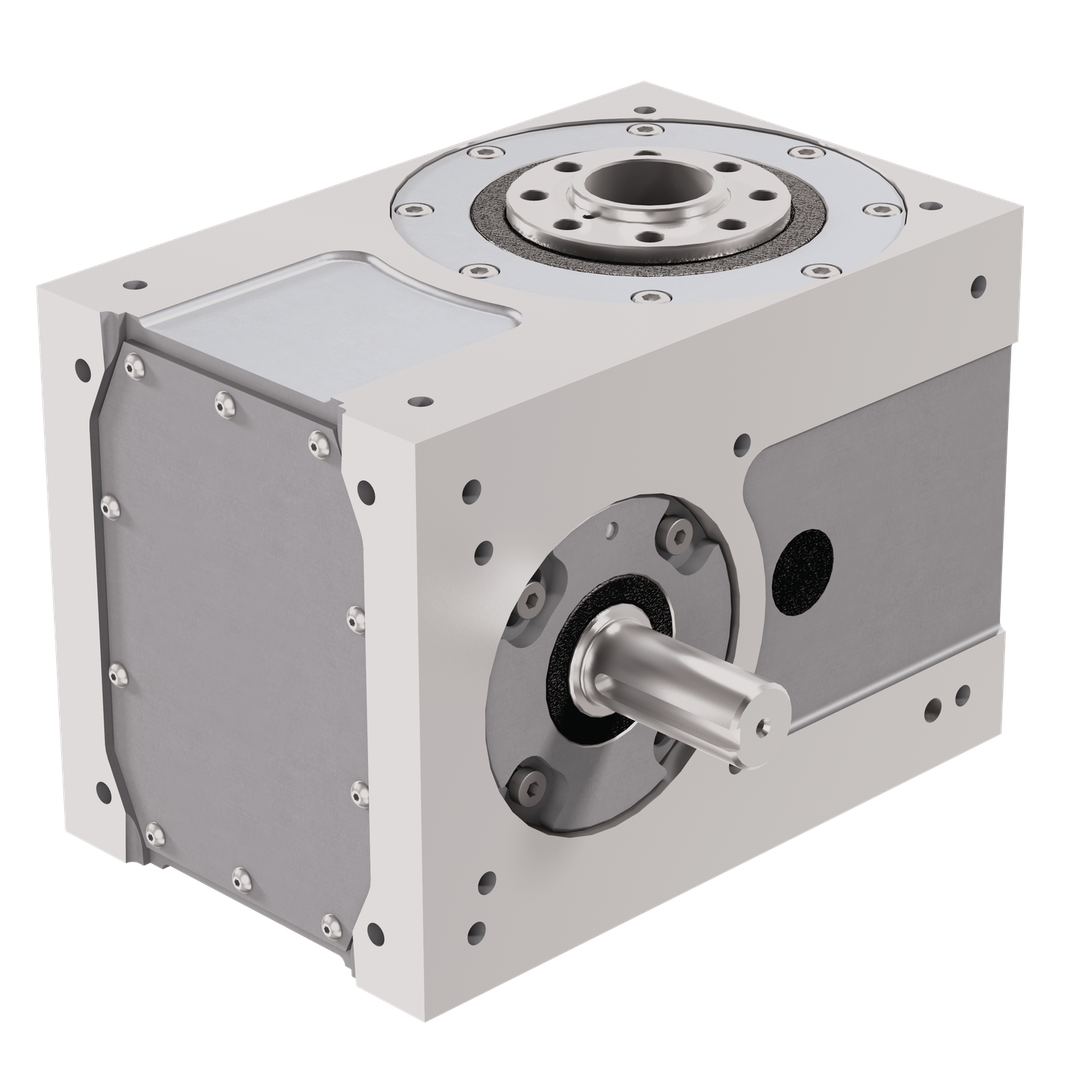

70RGD6H24-90_MSC_0.33 - RGD - Roller Gear Index Drives (Flange Output)

Visit Product Series:

Mechanical Rotary Indexers-RGD-RGS

Unit View

Dimensions / Applications

Technical Details

  • Center Distance (in)2.755905511811
  • Center Thru Hole Diameter (in)0.75
  • Height To Mounting Surface (in)5.511811023622
  • Internal Inertia (lb-in²)9
  • Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)0.65
  • Maximum Torque (in-lb)1982
  • Mounting Surface Diameter (in)2.5590551181102
  • Output Overturning Moment Capacity (in-lb)3626
  • Output Radial Capacity (lb)2833
  • Output Thrust/Axial Capacity (lb)2224

Product Information

  • Base Model70RGD6H24-90_MSC_0.33
  • BrandCamco
  • Product TypeRoller Gear Index Drive
  • Spindle Included?No
