CAMCO ROLLER GEAR INDEX DRIVES WITH SHAFT OR FLANGE OUTPUT – RGD & RGS SERIES

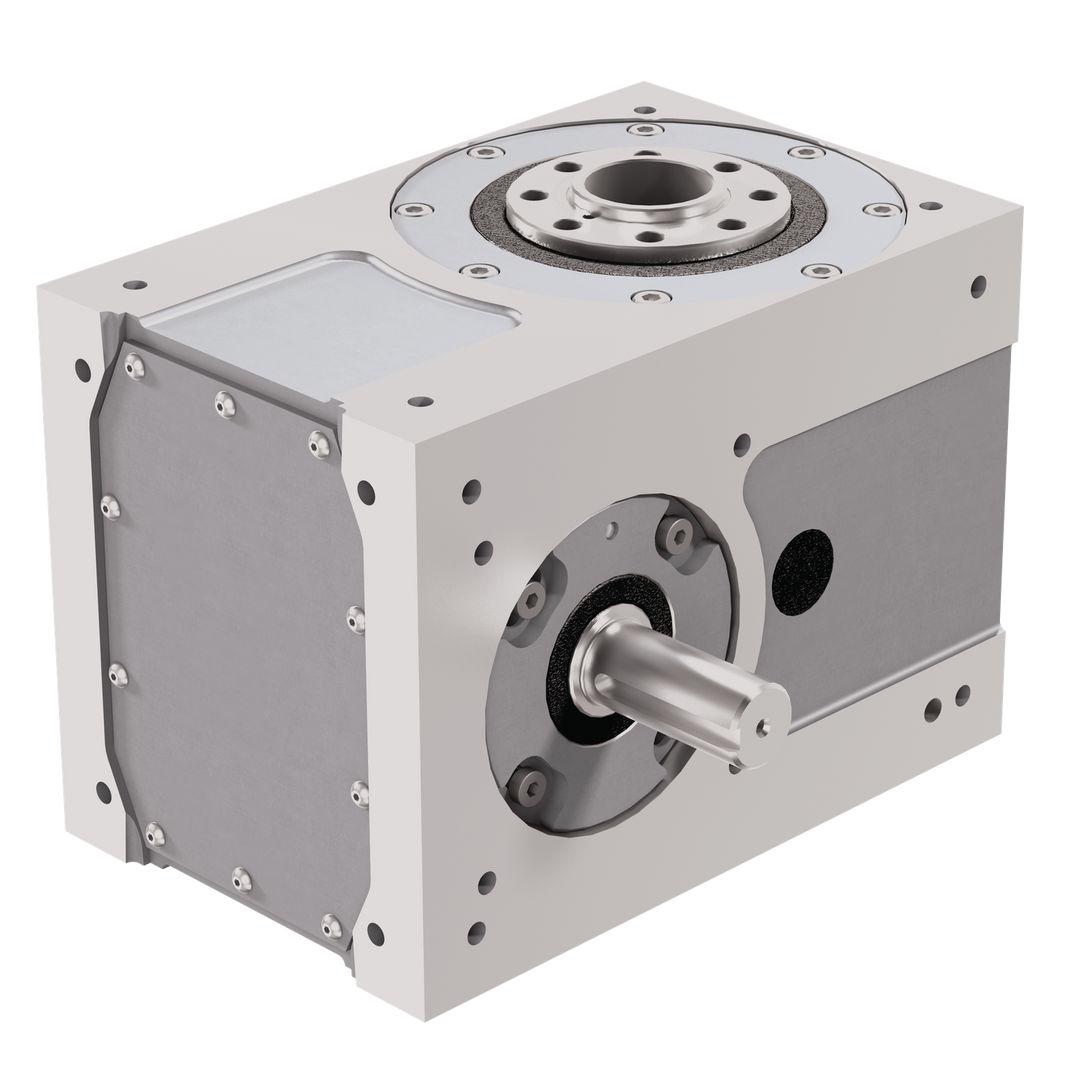

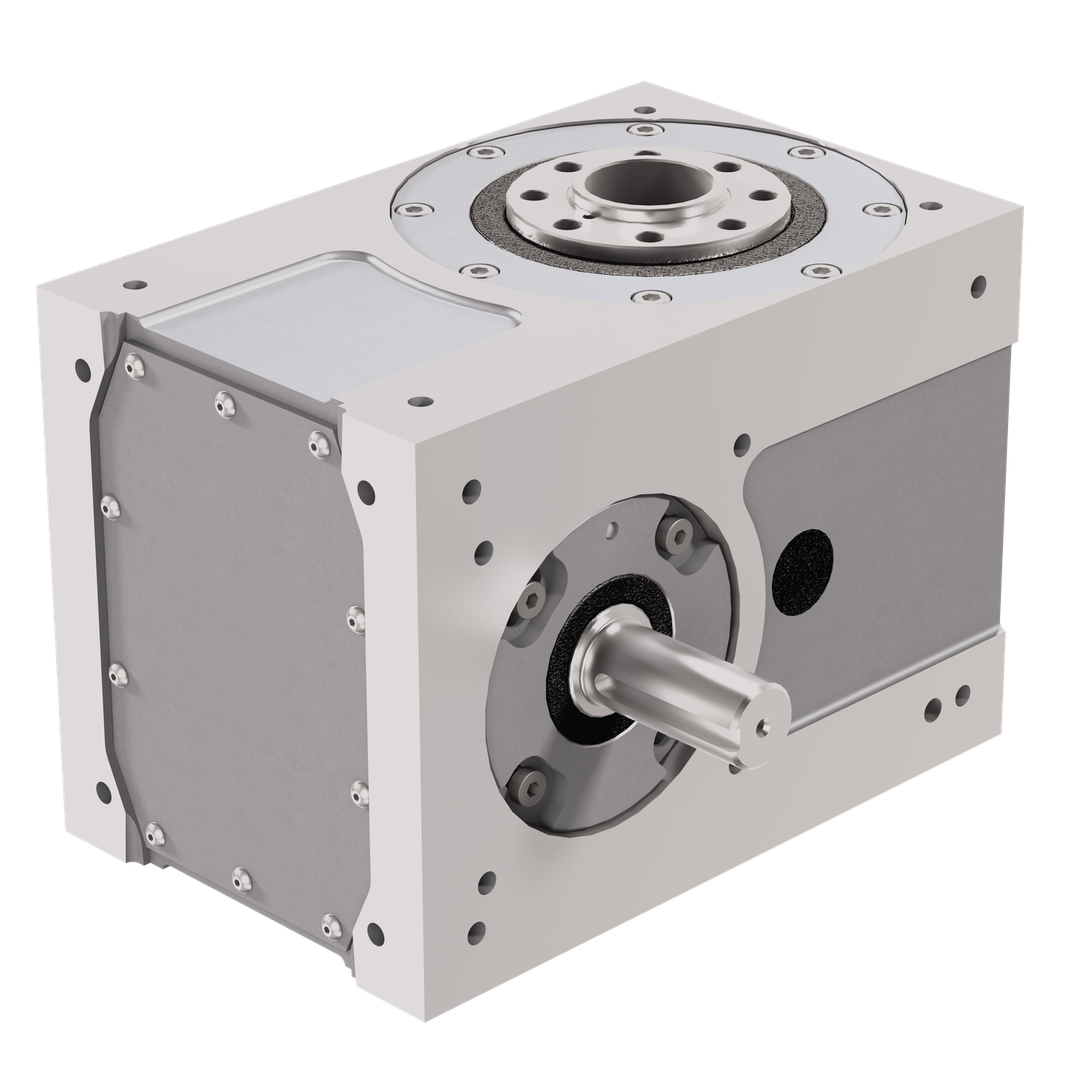

80RGD2H24-270_MSC_0.33 - RGD - Roller Gear Index Drives (Flange Output)

Visit Product Series:

Mechanical Rotary Indexers-RGD-RGS

Unit View

Dimensions / Applications

Technical Details

  • Center Distance (in)3.1496062992126
  • Center Thru Hole Diameter (in)1.02
  • Height To Mounting Surface (in)7.0866141732283
  • Internal Inertia (lb-in²)16
  • Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000)1.285
  • Maximum Torque (in-lb)1593
  • Mounting Surface Diameter (in)3.1496062992126
  • Output Overturning Moment Capacity (in-lb)7544
  • Output Radial Capacity (lb)4790
  • Output Thrust/Axial Capacity (lb)3470

Product Information

  • Base Model80RGD2H24-270_MSC_0.33
  • BrandCamco
  • Product TypeRoller Gear Index Drive
  • Spindle Included?No
