Unit View
Dimensions / Applications
- Length (in)6.88
- Weight (lb)2.38
- Application - AssemblyExcellent/High
- Application - Checking FixturesExcellent/High
- Application - Food ProcessingNot Recommended
- Application - MachiningPoor/Low
- Application - WeldingFair/Medium
- Product ApplicationCLAMPING
- Service EnvironmentNormal
Technical Details
- Clamp Arm Length (in)7.02
- Height Under Clamp Arm (in)1.98
- Maximum Holding Capacity (lbf)1000.0
- Bolt Retainer210114
- Supplied?No
Product Information
- Accessories247110-M|247110|247110
- Accomodates Workpiece VariationNo
- Base Mounting StyleFlange
- BrandDESTACO
- Clamp Arm StyleSolid Bar
- HandleVertical
- Handle ColorRed

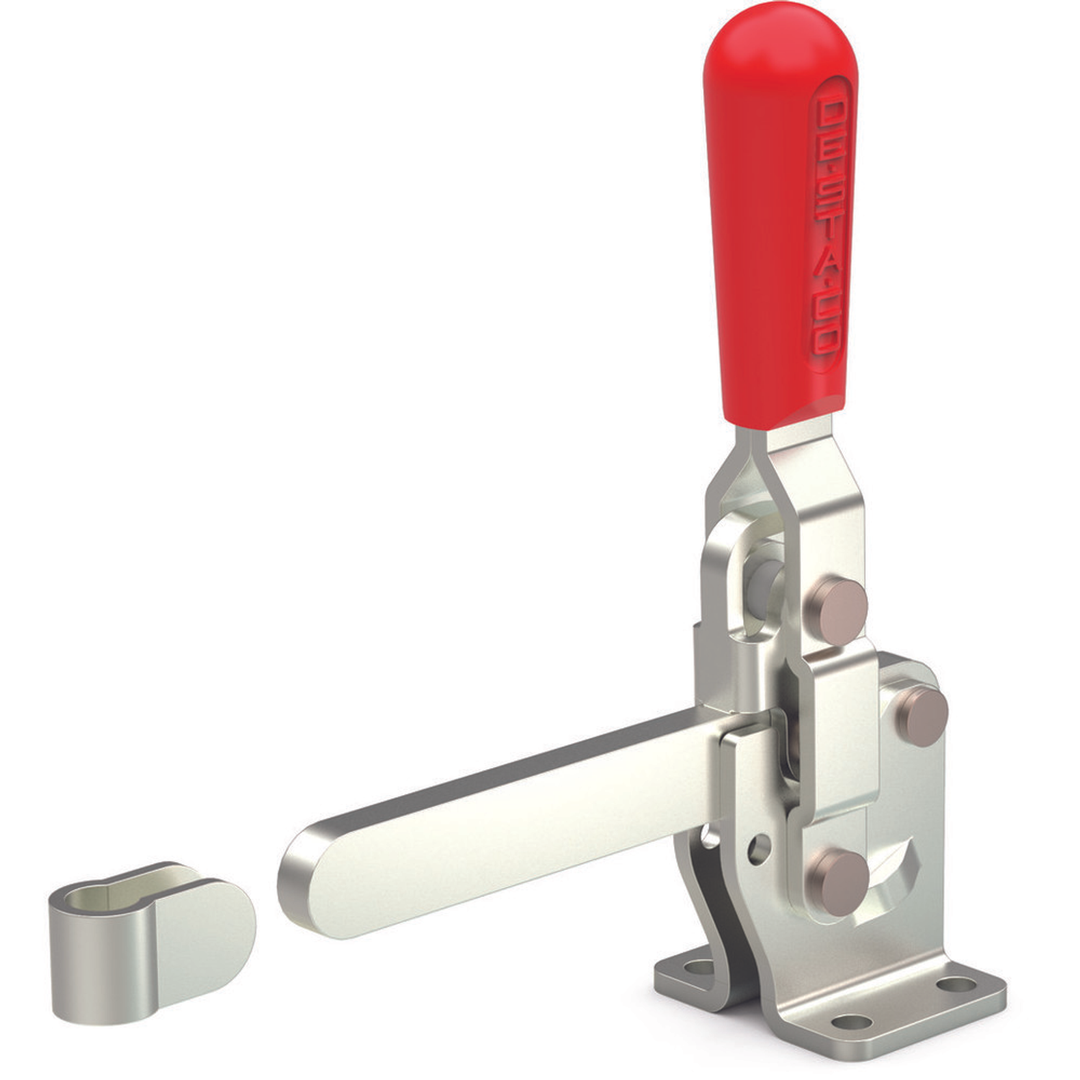

- Product TypeVertical Hold-Down Toggle Clamp
- Spindle Included?No
- Standard MaterialSteel
