Manual Clamping

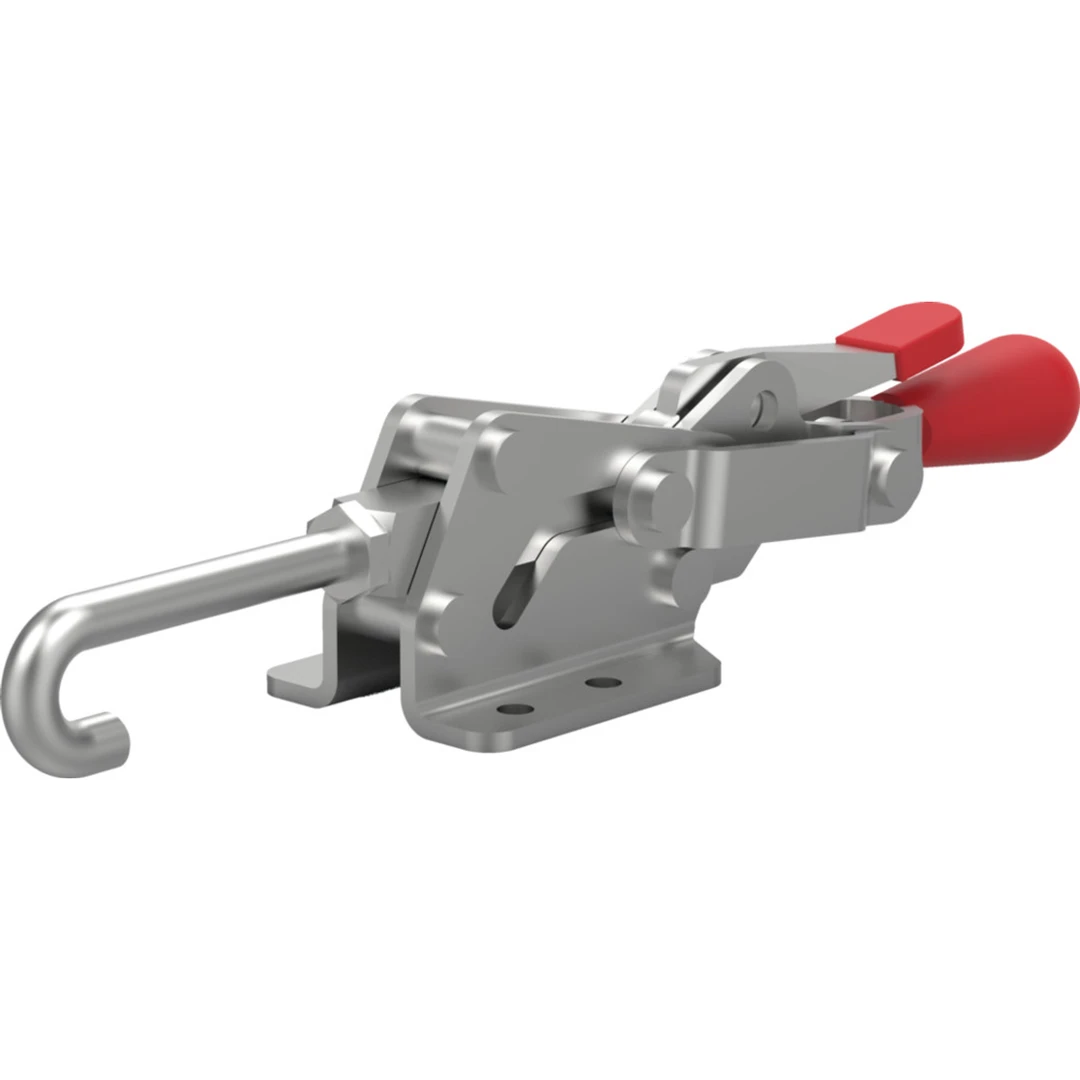

Destaco’s 3051-R Series pull action latch clamps feature controlled motion, single handed operation, and secure toggle locking action.

3051-R

Visit Product Series:
CAD

Product Details Unit View:
Max Hook Adjustment (in) 0.55
Hook Adjustment (in) 0.55
Weight (lb) 1.1
Drawing Movement without Thumb Control (in) 0.75
Maximum Holding Capacity (lbf) 1500
Drawing Movement without Thumb Control (mm) 19.1
Hook Adjustment (mm) 14
Hook Adjustable Range (mm) 14
Weight (kg) 0.5
Drawing Movement without Thumb Control (mm) 19.1
Maxmum Holding Capacity (N) 6700
Replacement Hook Assembly 3051208
Product Function Clamping
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 12:1
Standard Material Steel
Toggle Lock Plus Yes
Product Series 3031/3051
Base Mounting Style Flange
Product Type Controlled
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Hook Type J-Hook
Hook Adjustable Range 14
