Manual Clamping

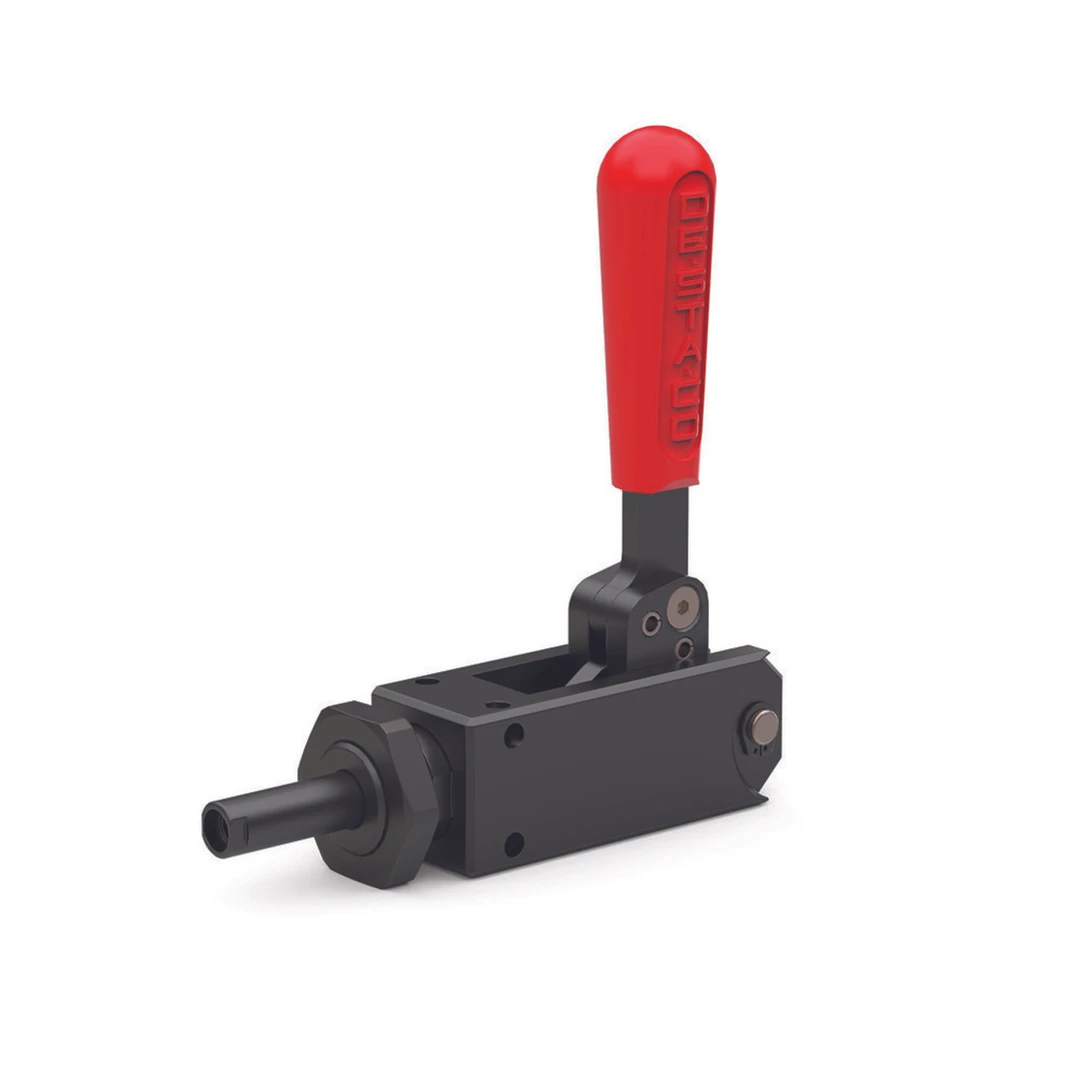

Destaco’s 614 Series straight line action clamps feature an optional single hold threaded mount or side mount. This model’s precision hardened and ground plunger is designed for anti-rotation under torsional loads.

614-M

Visit Product Series:
CAD

Product Details Unit View:
Weight (lb) 1.81
Plunger Height (in) 0.69
Maximum Holding Capacity (lbf) 1200.0
Plunger Travel (in) 1.25
Imperial or Metric Product Metric
Maxmum Holding Capacity (N) 5000.0
Plunger Height (mm) 17.5
Weight (kg) 0.82
Plunger Travel (mm) 31.8
Plunger Thread M8
Spindle Included? No
Product Type Standard
Base Mounting Style Flange
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Standard Material Steel
Toggle Lock Plus No
Product Function Clamping
Mounting Nut (Supplied) 614-1-10
PublishedDate 1684931666000
Plunger Round
Product Series 614
