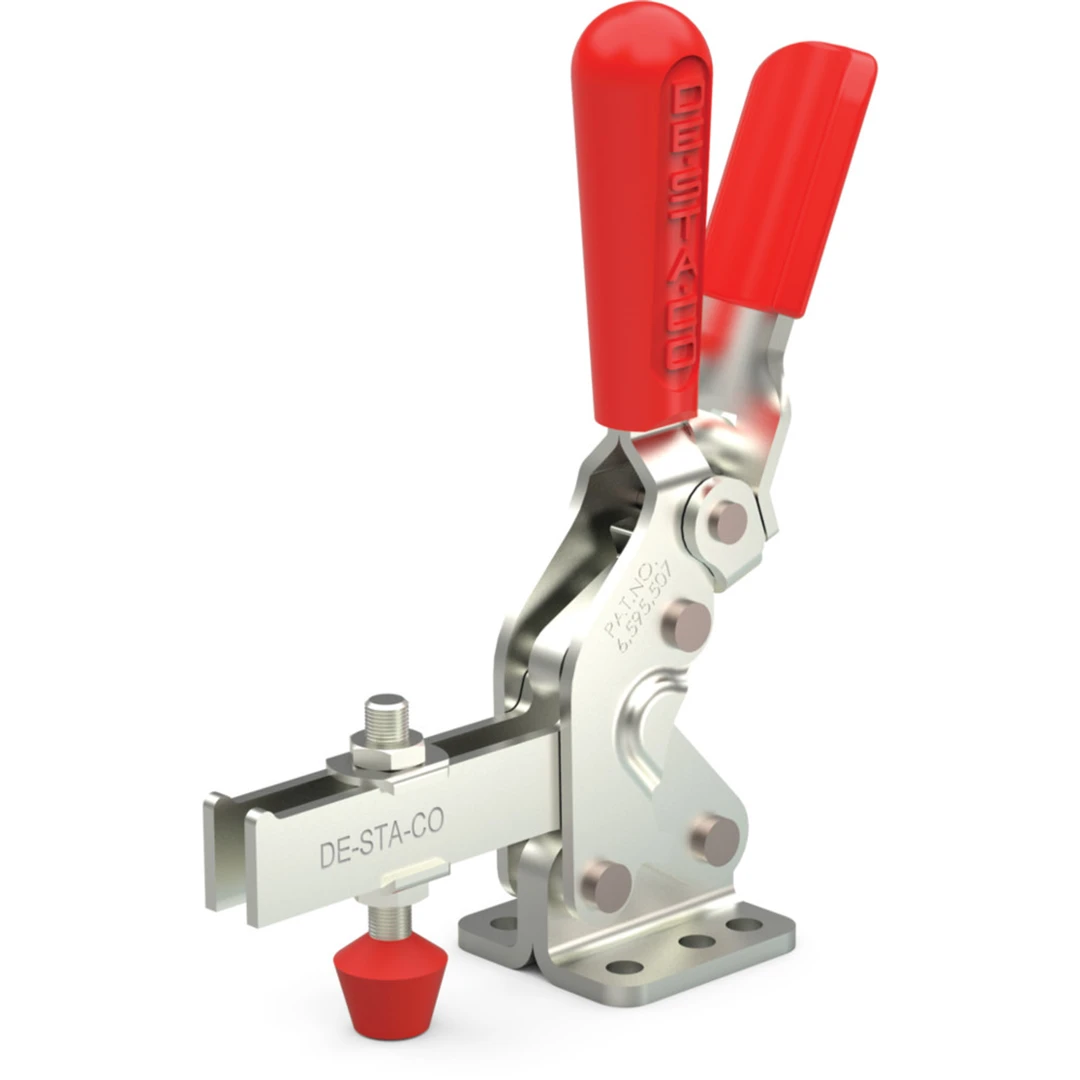

2007-UR - 2007-U with Toggle Lock Plus

Visit Product Series:

Toggle-LockHold Down Clamps-2007

Unit View

Dimensions / Applications

  • Length (in)6.60
  • Weight (lb)1.19
  • Width (in)1.94 in
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesExcellent/High
  • Application - Food ProcessingNot Recommended
  • Application - MachiningPoor/Low
  • Application - WeldingFair/Medium
  • ApplicationsAssembly; Checking Fixtures; Clamping; Closures; Woodworking
  • Product ApplicationCLAMPING

Technical Details

  • Arm Length (in)2.88
  • Clamp Arm Height (in)1.25
  • Clamp Arm Length (in)2.88
  • Height Under Clamp Arm (in)1.25
  • Maximum Holding Capacity (lbf)1000
  • Supplied?No

Product Information

  • Accessories2007208-M|507107|2007208-M|507107
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleFlange
  • BrandDESTACO
  • Clamp Arm StyleU-Bar
  • HandleVertical
  • Handle ColorRed
  • Product TypeVertical Hold-Down Toggle Clamp
  • Spindle Assembly2007208-M
  • Spindle Included?No
