HORIZONTAL, MANUAL HOLD-DOWN CLAMPS WITH LOCKING MECHANISM – 2013 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Manual Clamping
Hold Down Clamps
Hold Down Clamps-2013

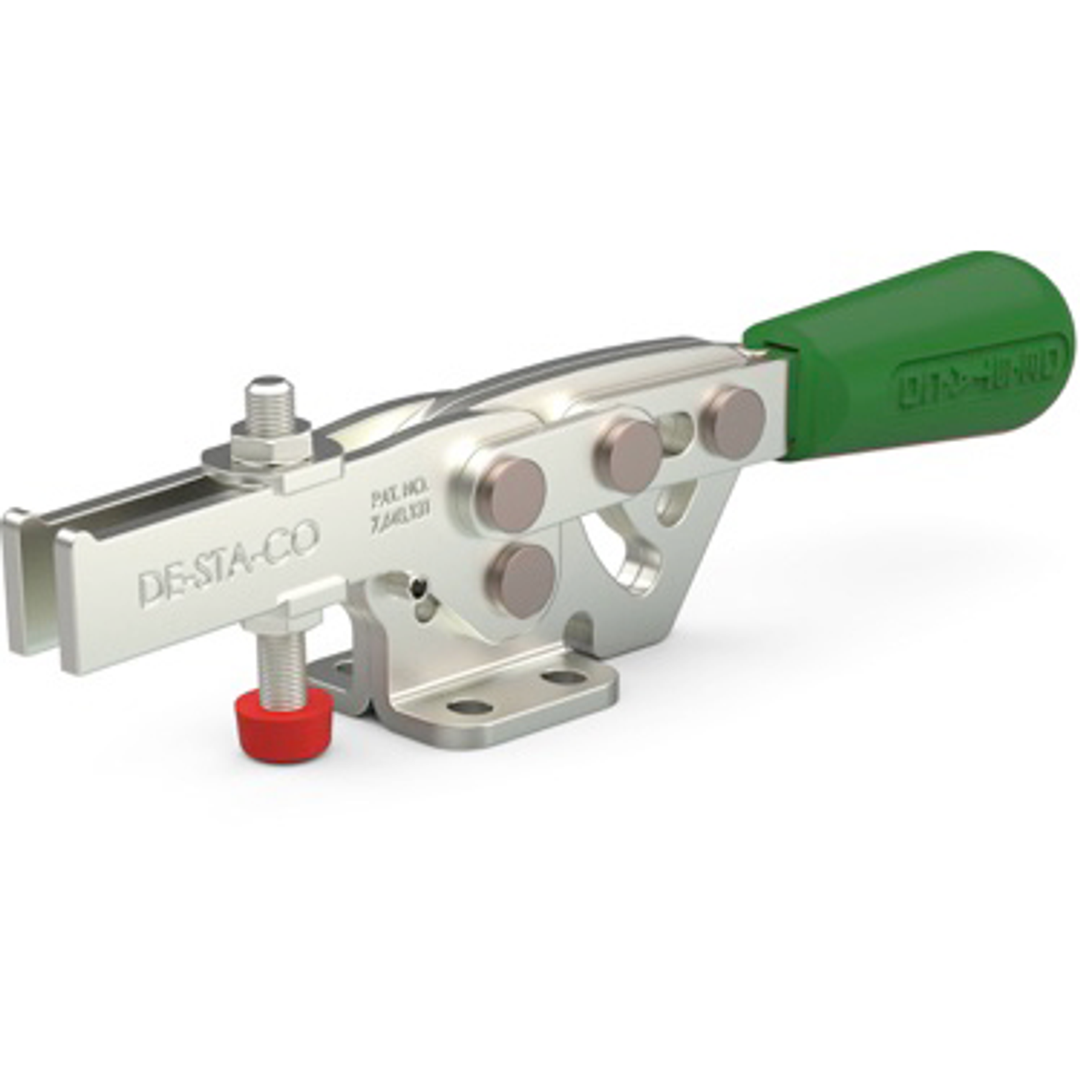

2013-U-G - a 2013-U with Green Handle
2013-U-G - a 2013-U with Green Handle
Email product details
Visit Product Series:
Hold Down Clamps-2013
Colored Handles
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
5.87
Weight (lb)
0.37
Application - Assembly
Excellent/High
Application - Checking Fixtures
Excellent/High
Application - Food Processing
Not Recommended
Application - Machining
Poor/Low
Application - Welding
Fair/Medium
Product Application
CLAMPING
Service Environment
Normal
Technical Details
Clamp Arm Length (in)
1.65
Height Under Clamp Arm (in)
0.75
Maximum Holding Capacity (lbf)
295.0
Supplied?
No
Product Information
Accessories
2013208-M|102111
Accomodates Workpiece Variation
No
Base Mounting Style
Flange
Brand
DESTACO
Clamp Arm Style
U-Bar
Handle
Horizontal
Handle Color
Green
Product Type
Horizontal Hold-Down Toggle Clamp
Spindle Assembly
2013208-M
Spindle Included?
No
Show More
CAD / Download
Accessories
Resources
FAQs
Articles
