LOW-PROFILE, MANUAL HORIZONTAL HOLD DOWN CLAMPS – 227 SERIES

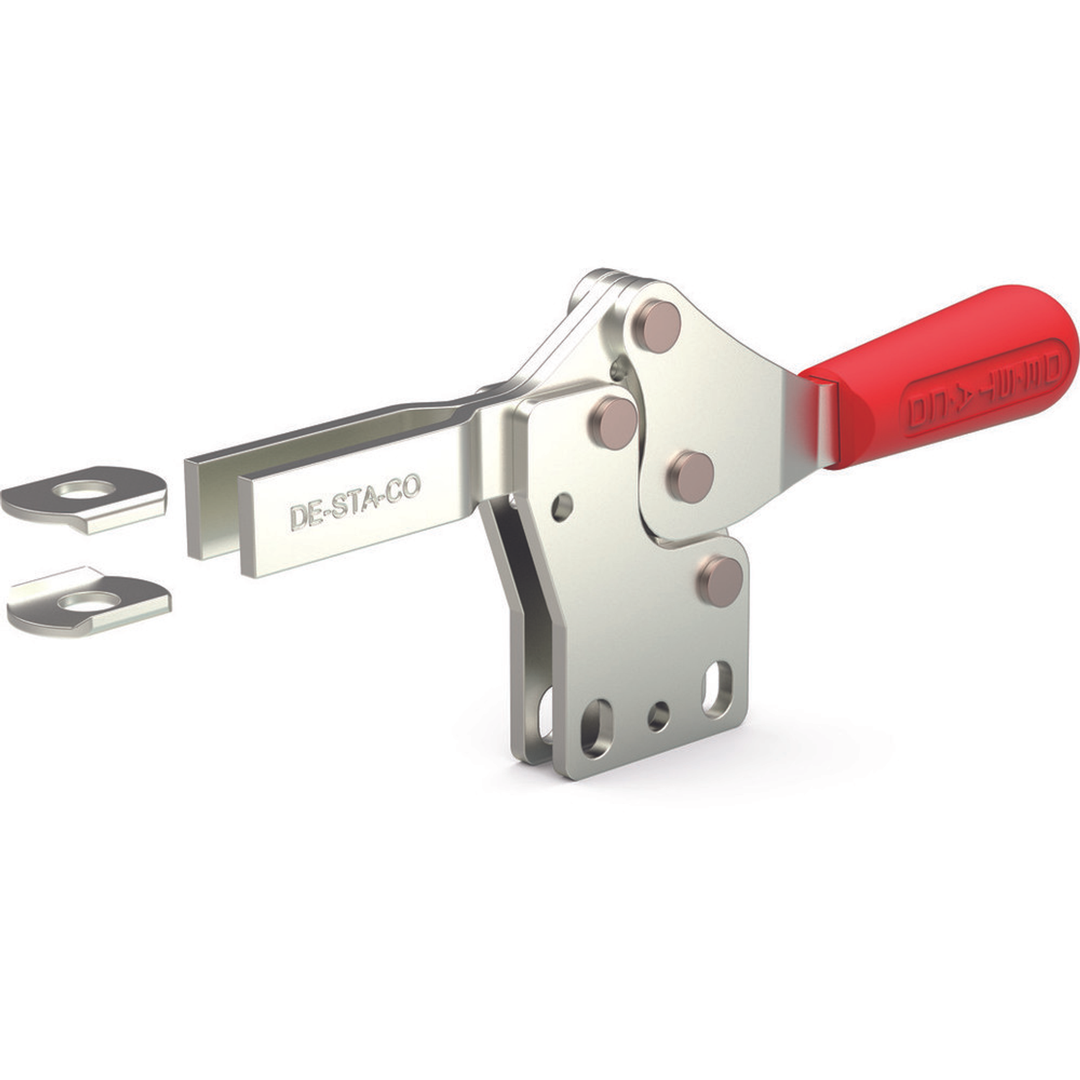

227-UB-L - Straight Base, Open Bar

Visit Product Series:

Hold Down Clamps-227

Unit View

Dimensions / Applications

  • Length (in)7.04
  • Weight (lb)0.68
  • Application - AssemblyExcellent/High
  • Application - Checking FixturesExcellent/High
  • Application - Food ProcessingFair/Medium
  • Application - MachiningPoor/Low
  • Application - WeldingFair/Medium
  • Product ApplicationCLAMPING
  • Service EnvironmentNormal

Technical Details

  • Clamp Arm Length (in)2.39
  • Height Under Clamp Arm (in)1.45
  • Maximum Holding Capacity (lbf)500
  • Supplied?No

Product Information

  • Accessories207426-Q|2007208-M|507107|L-227-2-01|L-227-2-02|L-227-3-01|L-227-4-01|507107|L-227-1-01|L-227-1-02|L-227-1-03|L-227-1-04|L-227-2-01|L-227-2-02|L-227-3-01|L-227-4-01|207426-Q
  • Accomodates Workpiece VariationNo
  • Base Mounting StyleStraight
  • BrandDESTACO
  • Clamp Arm StyleOpen U-Bar
  • HandleHorizontal
  • Handle ColorRed
  • Product TypeHorizontal Hold Down Clamp
  • Spindle Included?No
  • Standard MaterialSteel
