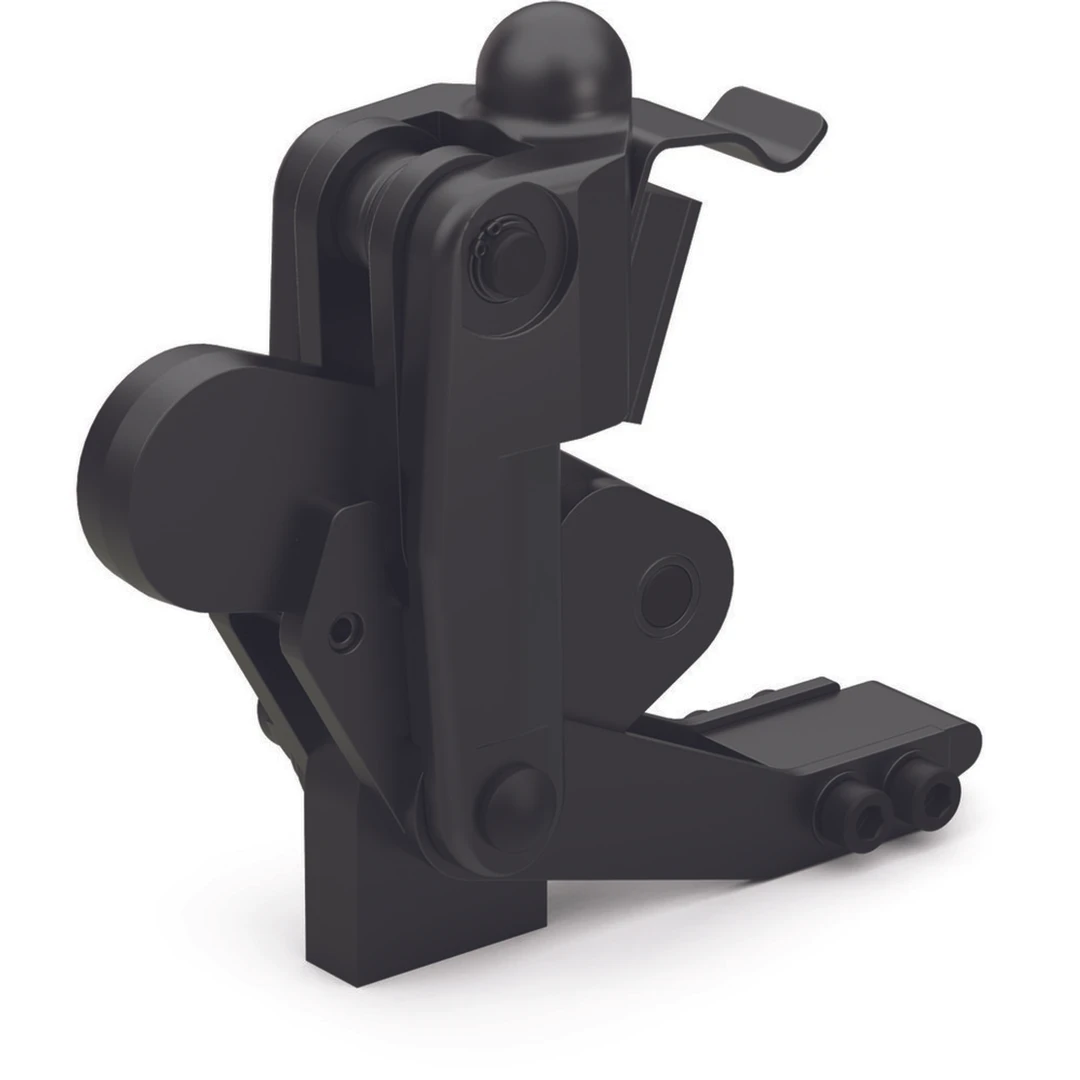

WELDABLE, VERTICAL HOLD-DOWN CLAMPS FOR HEAVY DUTY APPLICATIONS – 500 SERIES
Visit Product Series:
Hold Down Clamps-500Unit View
Dimensions / Applications
- Length (in)4.44
- Weight (lb)3.31
- Width (in)1.89 in
- Application - AssemblyExcellent/High
- Application - Checking FixturesFair/Medium
- Application - Food ProcessingNot Recommended
- Application - MachiningFair/Medium
- Application - WeldingExcellent/High
- Product ApplicationCLAMPING
- Service EnvironmentHarsh/Dirty
Technical Details
- Clamp Arm Length (in)0.99
- Height To Top Of Clamp Arm (in)98.8
- Maximum Holding Capacity (lbf)2400
- Supplied?No
Product Information
- Accessories503503-L|505501|505502|505503|505503-L
- Accomodates Workpiece VariationNo
- Base Mounting StyleSwivel with locking spring clip
- BrandDESTACO
- Clamp Arm StyleWeldable
- HandleVertical
- Handle ColorRed
- Product TypeVertical Hold-Down Toggle Clamp
- Spindle Included?No
- Standard MaterialForged alloy steel
