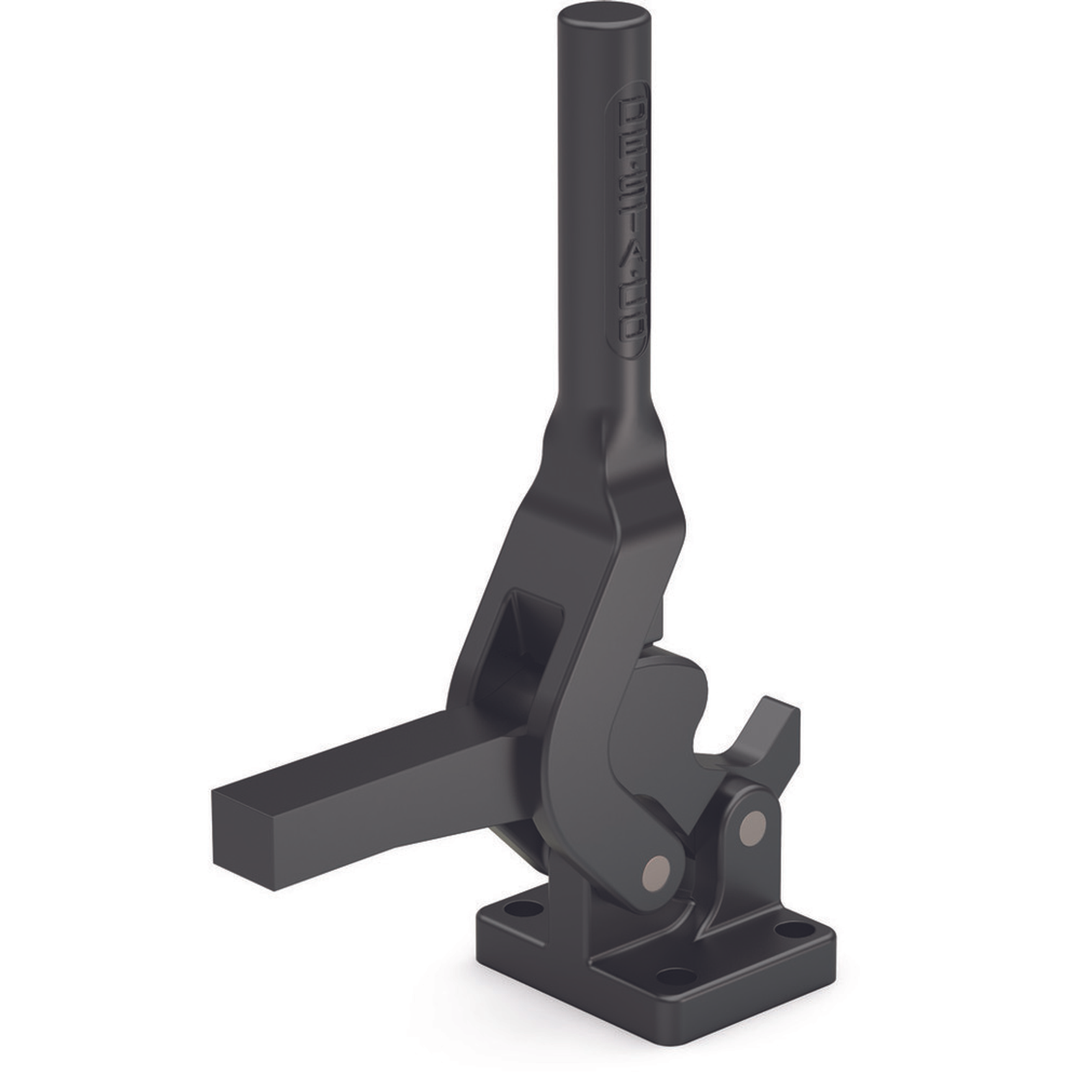

HEAVY-DUTY, CAM ACTION VERTICAL HOLD-DOWN CLAMPS – 7-58 THRU 7-101 SERIES
Unit View
Dimensions / Applications
- Length (in)6.00
- Weight (lb)3.0
- Application - AssemblyExcellent/High
- Application - Checking FixturesNot Recommended
- Application - Food ProcessingNot Recommended
- Application - MachiningFair/Medium
- Application - WeldingExcellent/High
- Service EnvironmentNormal
Technical Details
- Clamp Arm Length (in)3.5
- Height Under Clamp Arm (in)2.19
- Maximum Holding Capacity (lbf)1000.0
- Supplied?No
Product Information
- Accomodates Workpiece VariationNo
- Base Mounting StyleFlange
- BrandDESTACO
- Clamp Arm StyleSolid Bar
- HandleVertical
- Product TypeCam-Action Clamp
- Spindle Included?No
- Standard MaterialSteel
