PNEUMATIC POWER CYLINDERS FOR CLAMPING, STAMPING & PRESSING – K SERIES

Name: K1000-30-7-A - Pneumatic Power Cylinder
Brand: DESTACO
SKU: K1000-30-7-A
Price: 1.00 USD
Availability: InStock

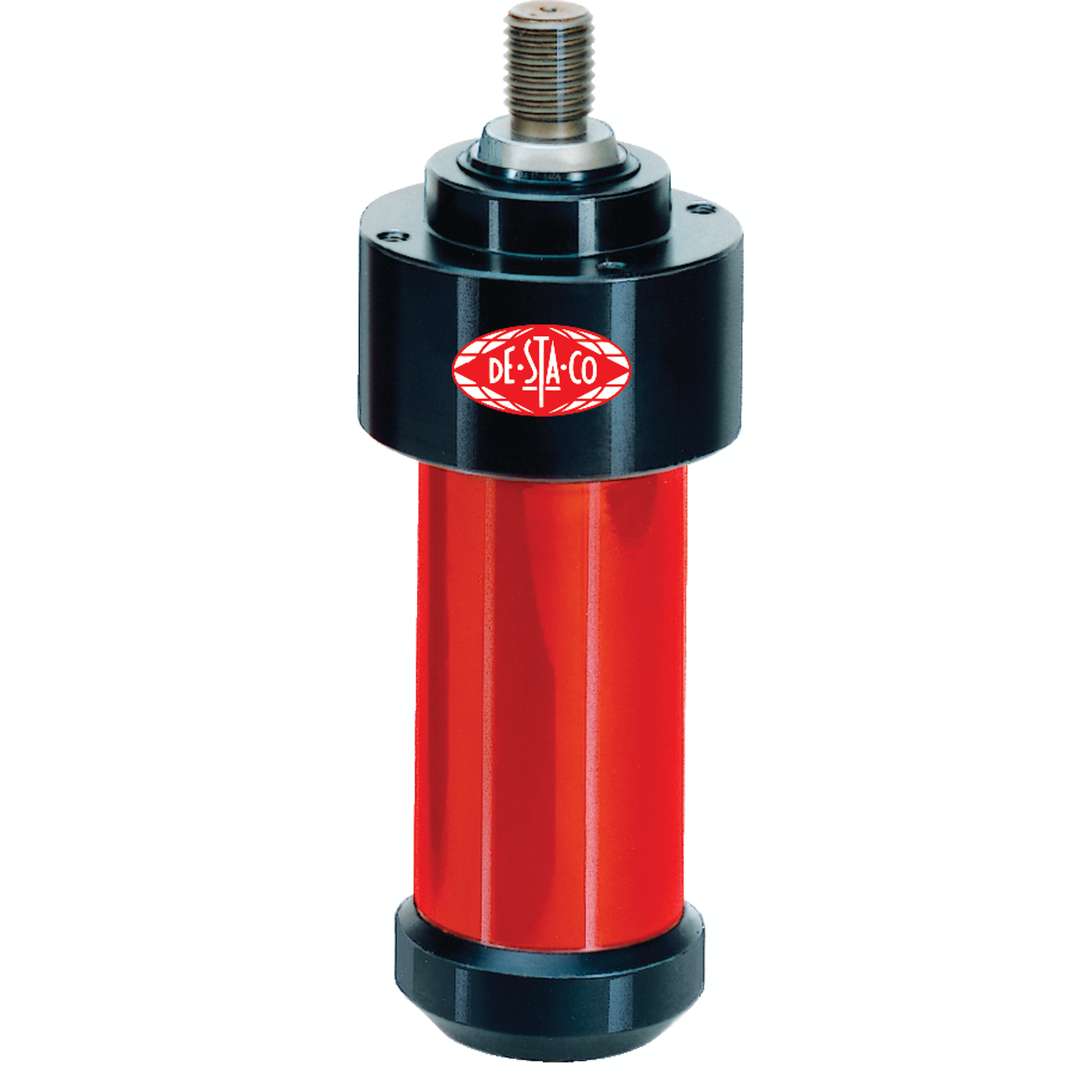

K1000-30-7-A - Pneumatic Power Cylinder With Sensing

Visit Product Series:

Imperial

Metric

Air Consumption per double stroke at 6 bar (ft³)2.66
Air Consumption per double stroke at 87 psi (ft³)0.094
Cylinder Bore (in)2.48
Forward Stroke (in)1.18
Max. Clamping Force (lbf)2248
Piston force within forward stroke at 6 bar (lbf)393
Power Stroke (in)0.276
End position control by magnetic field sensorsYes [ en_US ] ; Yes [ zh_CN ] ; Ja [ de_DE ] ; Oui [ fr_FR ]
Stroke Frequency depending on total stroke (per minute)5 to 30 [ en_US ]
Supplied?No
