Manual Clamping
Small toggle clamp series for light duty clamping in tight spaces with straight base and U-bar.

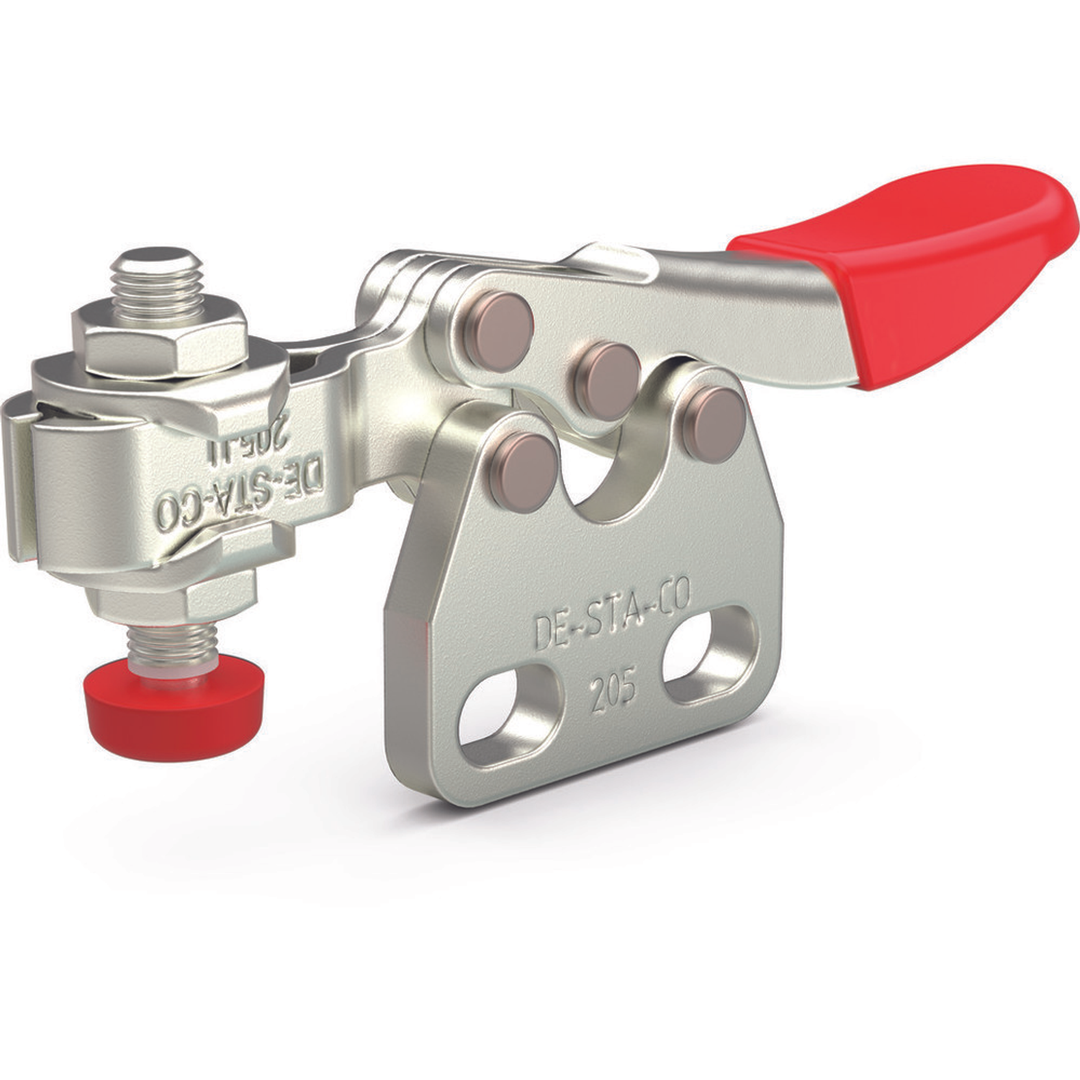

205-UB

Horizontal Hold Down Clamp
  • Supplied with neoprene spindle assembly.
  • U-bar clamp arm
Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 60
Height Under Clamp Arm (in) 0.44
Clamp Arm Length (in) 0.73
Weight (lb) 0.07
Maxmum Holding Capacity (N) 270
Height Under Clamp Arm (mm) 11.2
Clamp Arm Length (mm) 18.5
Weight (kg) 0.03
PublishedDate 1725394328000
Toggle Lock Plus No
Accomodates Workpiece Variation No
Application - Checking Fixtures Excellent/High
Application - Assembly Excellent/High
Product Series 205
Handle Opening (+10°) 80
Standard Material Steel
Application - Welding Poor/Low
Service Environment Normal
Flanged Washers 105106
Clamp Arm Style U-Bar
Application - Wood-Working Excellent/High
Spindle Assembly 205208-M
Product Function Clamping
Application - Closures Excellent/High
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Application - Machining Poor/Low
Clamp Bar Opening (+10°) (degrees) 90
Product Type Standard
Application - Food Processing Fair/Medium
Handle Horizonal
Base Mounting Style Straight
Product Accessories
205208-M
SPINDLE M4X20 WITH HEX JAM NUT
