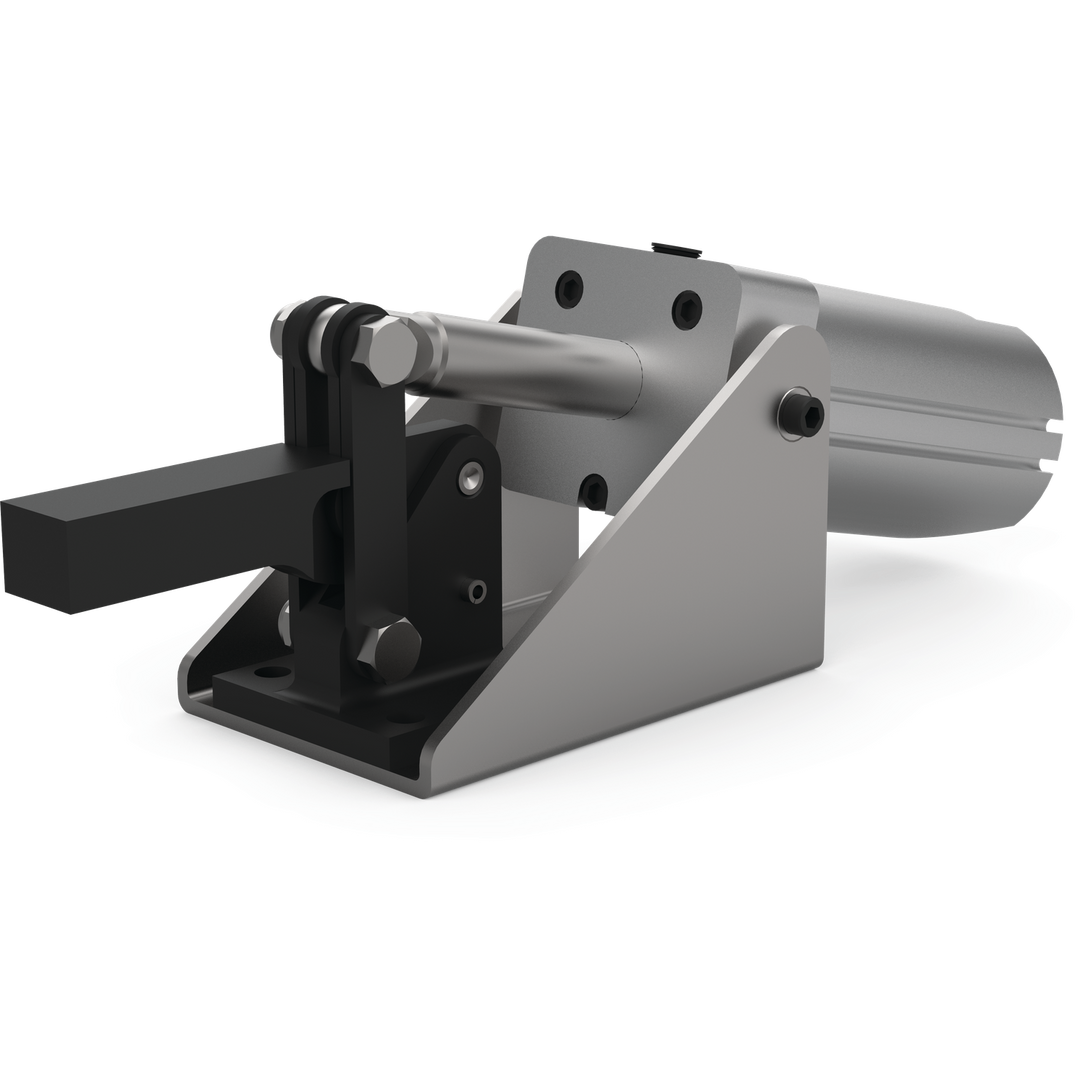

PNEUMATIC TOGGLE CLAMPS WITH FLOW RESTRICTION FOR ASSEMBLY & WELDING – 846 SERIES
Visit Product Series:
Standard Pneumatic Clamps-846Unit View
Dimensions / Applications
- Length (in)10.33
- Weight (lb)4.18
- Product ApplicationCLAMPING
Technical Details
- Air Consumption (ft³)0.029
- Clamp Arm Length (in)2.19
- Cylinder Bore (in)1.57
- Exerting Force (lbf)786.0
- Height Under Clamp Arm (in)1.61
- Maximum Holding Capacity (lbf)750.0
- Air Port size1/8 NPT
- Operating Temperature-10° to 90°C (-14° to 194° F)
- Supplied?No
Product Information
- Accessories810169|8EA-109-1|CABL-010|CABL-013|846-LC|846CYL|810450-40-1-00
- BrandDESTACO
- Clamp Arm Stylesolid
- Product TypePneumatic Clamp
- Replacement Seal Kit810450-40-1-00
- Spindle Included?No
