VACUUM CUPS
Visit Product Series:
Vacuum CupsUnit View
Dimensions / Applications
- Length (in)3.27
- Weight (oz)2.78
- Chemical ResistanceOil, water, grease, hydraulic fluid, alcohol
- Product ApplicationHANDLING
Technical Details
- Cup Size3.15 x 1.18 in
- Holding Capacity - Horizontal Dry (lbf)22.5
- Holding Capacity - Horizontal Wet (lbf)21.3
- Holding Capacity - Vertical Lift (lbf)14.6
- DurometerHT (Black)
- ShapeOval
- Supplied?No
Product Information
- BrandDESTACO
- MaterialHT2

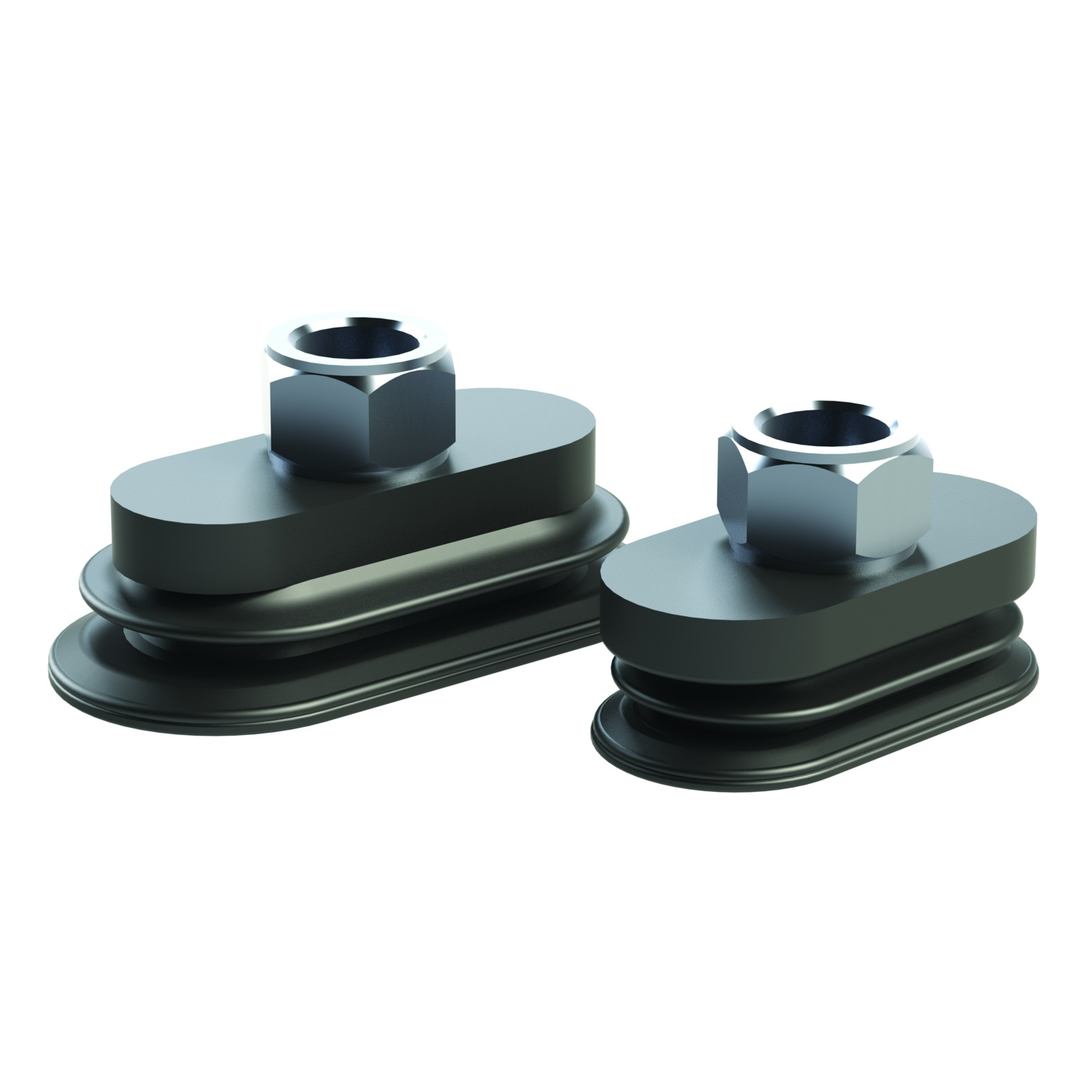

- Product TypeHot Forming Bellow
- Spindle Included?No
