PNEUMATIC SWING CLAMPS FOR TIGHT SPACES – 9500 SERIES

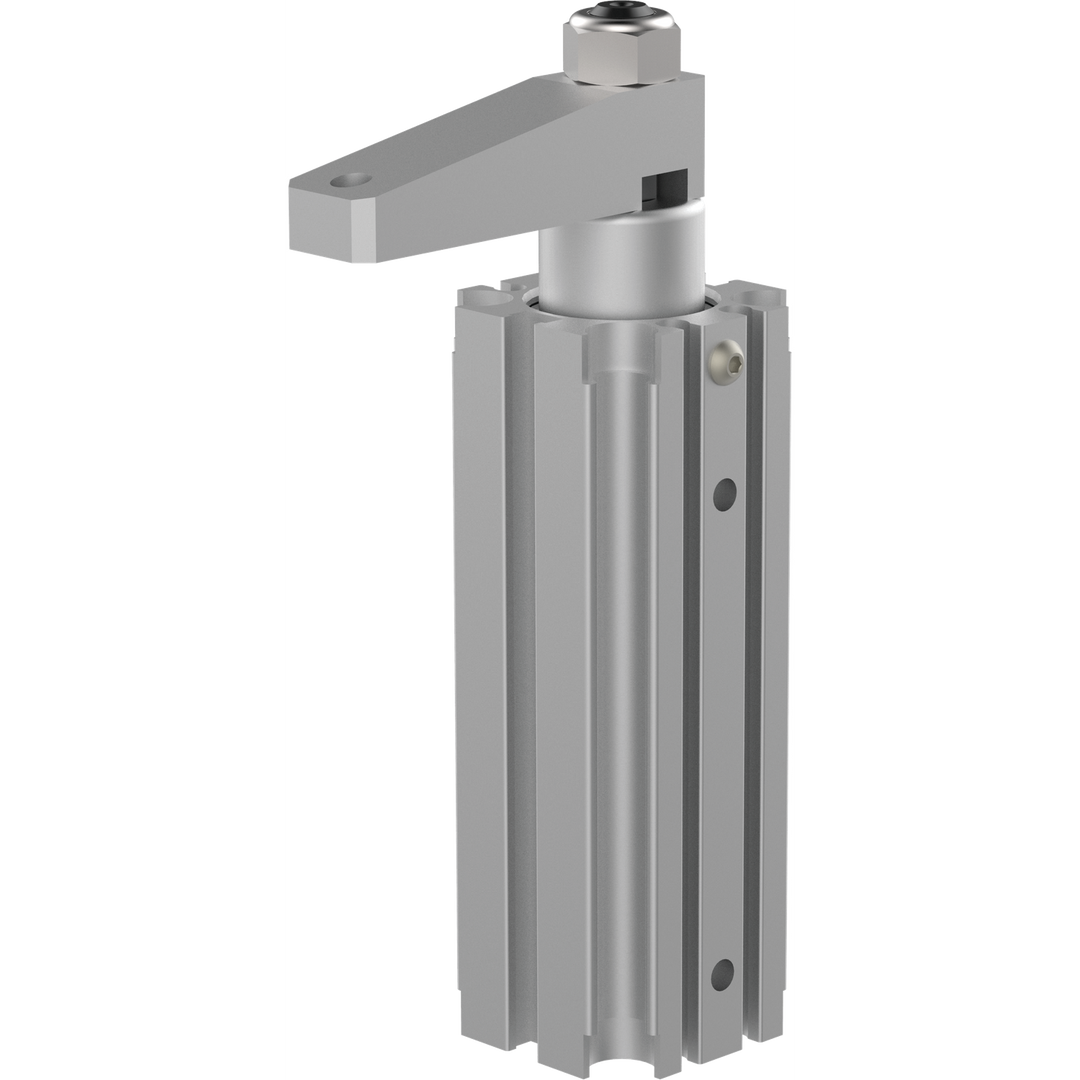

9540-2GL - Swing Cyl 40mm LH, G Port - Replaces 9540Gl

Visit Product Series:

Pneumatic Swing Clamps-9500

Unit View

Dimensions / Applications

  • Length (in)6.73
  • Weight (lb)1.98
  • Product ApplicationCLAMPING

Technical Details

  • Air Consumption (per double stroke at 7 psi) (in³)0.016
  • Clamping Force @ 5Bar[72Psi] (lbf.)123.0
  • Cylinder Bore (in)1.57
  • Stroke (in)0.79
  • Air Port sizeG-1/8
  • Foot Mount Kit954060
  • MountBlock: Side flange, tapped hole, standard
  • Supplied?No
  • Swing DirectionLH
  • Tapped Hole Mount Kit954061

Product Information

  • Accessories954092|954060|954061|953062|9540150|9540153
  • BrandDESTACO
  • Product TypePneumatic Swing Clamp
  • Spindle Included?No
  • Standard Mount Kit954062
