COMPACT, STRAIGHT LINE ACTION CLAMPS FOR ASSEMBLY, FIXTURE CHECKING, WELDING & TENSIONING DEVICES – 602, 604 & 624 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Manual Clamping
Straight Line Action Clamps
Straight Line Action Clamps-602-604-624

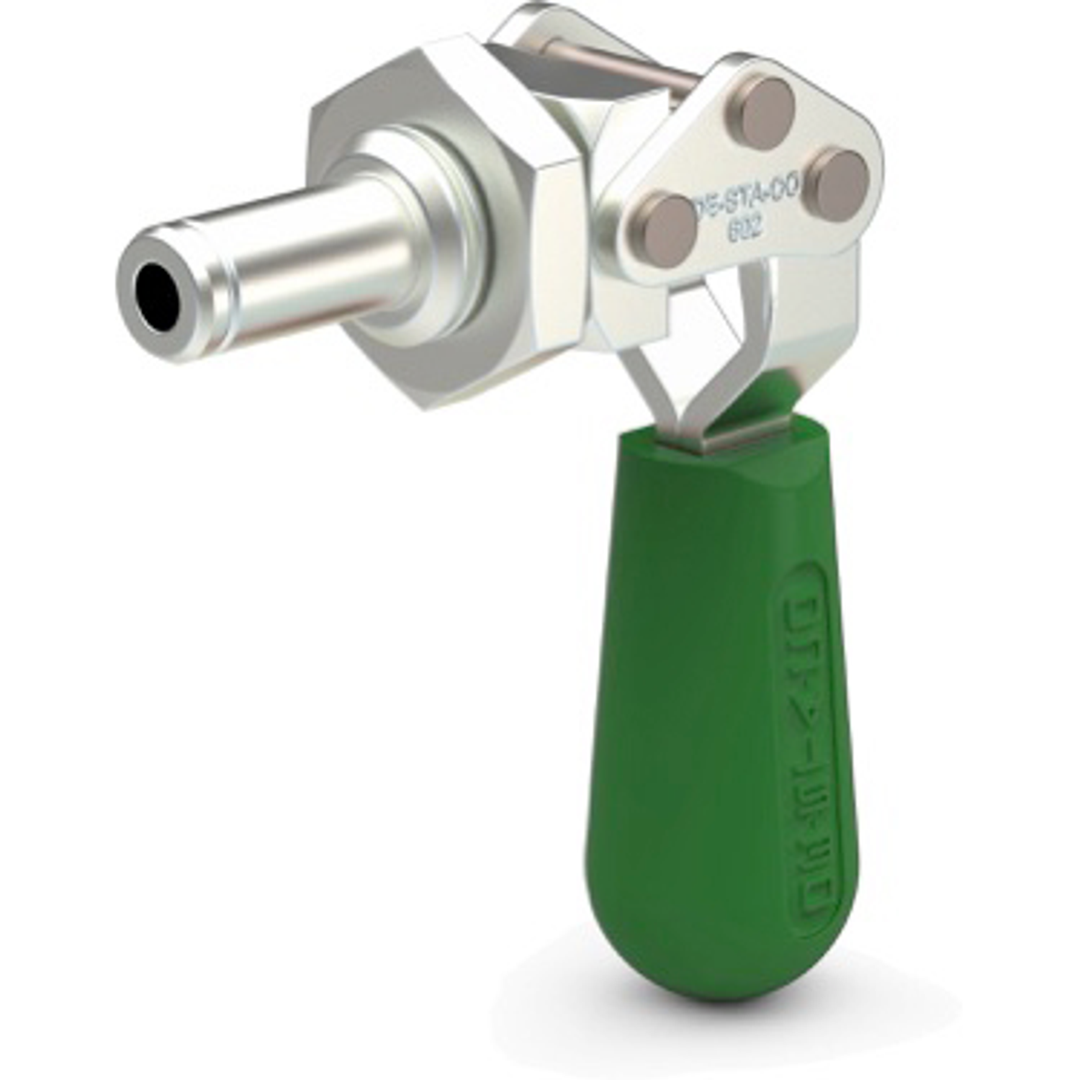

602-MM-G - a 602-MM with Green Handle
602-MM-G - a 602-MM with Green Handle
Email product details
Visit Product Series:
Straight Line Action Clamps-602-604-624
Colored Handles
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
2.43
Weight (lb)
0.11
Preferred Market
Global
Product Application
CLAMPING
Technical Details
Maximum Holding Capacity (lbf)
200.0
Plunger Height (in)
0.47
Plunger Travel (in)
0.75
Imperial or Metric Product
Metric
Mounting Nut (Supplied)
602105-M
Plunger
Round
Plunger Thread
M6
Spindle (Recommended)
205203-M
Supplied?
No
Product Information
Accessories
205203-M|602
Base Mounting Style
Flange
Brand
DESTACO
Handle
360 Degree Rotatable Handle
Handle Color
Green
Product Type
Straight-Line Action Clamp
Spindle Included?
No
Standard Material
Steel
