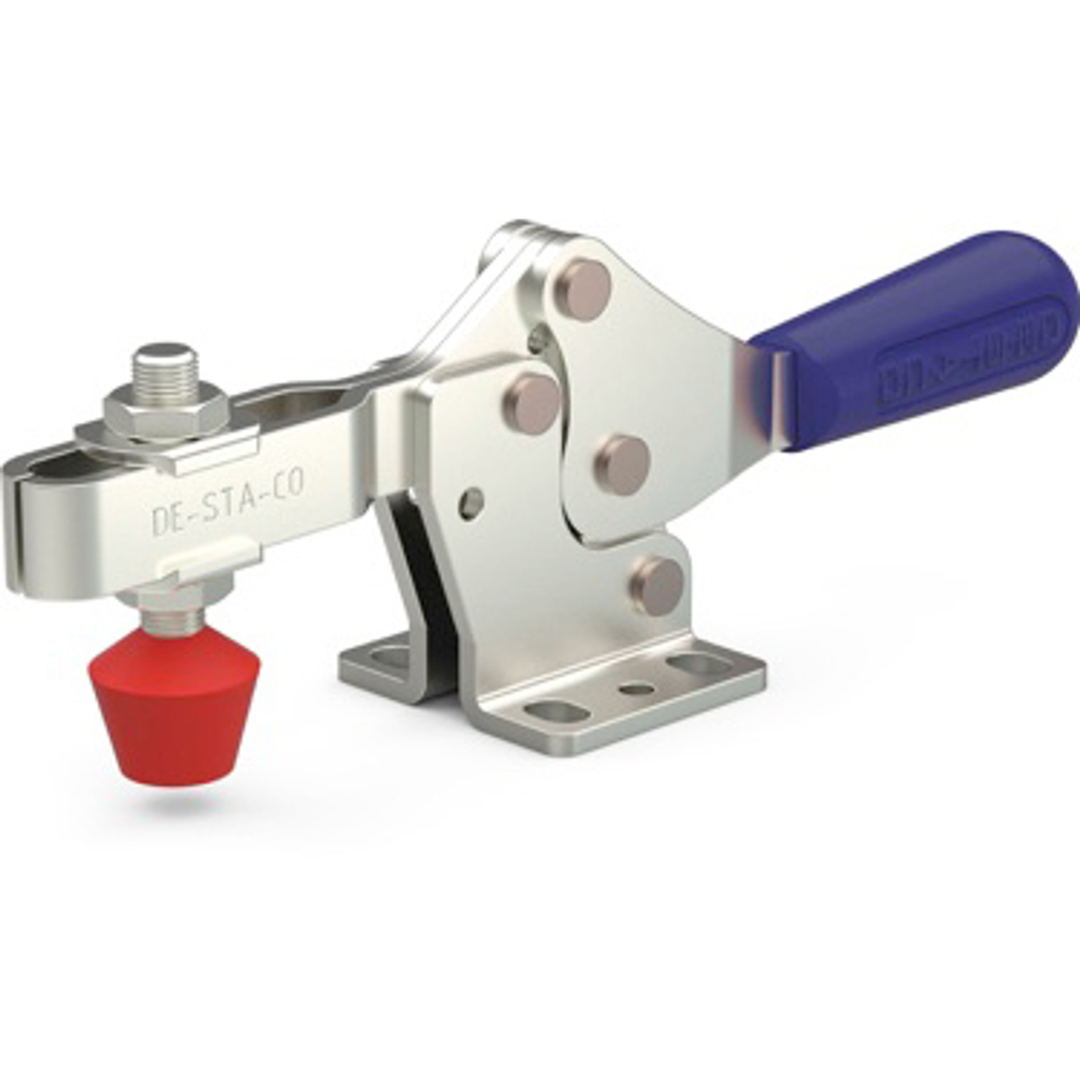

LOW-PROFILE, MANUAL HORIZONTAL HOLD DOWN CLAMPS – 227 SERIES
Unit View
Dimensions / Applications
- Length (in)7.48
- Weight (lb)0.68
- Application - AssemblyExcellent/High
- Application - Checking FixturesExcellent/High
- Application - Food ProcessingFair/Medium
- Application - MachiningPoor/Low
- Application - WeldingFair/Medium
- Product ApplicationCLAMPING
- Service EnvironmentNormal
Technical Details
- Clamp Arm Length (in)2.65
- Height Under Clamp Arm (in)1.25
- Maximum Holding Capacity (lbf)500.0
- Supplied?No
Product Information
- Accomodates Workpiece VariationNo
- Base Mounting StyleFlange
- BrandDESTACO
- Clamp Arm StyleU-Bar
- HandleHorizontal
- Handle ColorBlue
- Product TypeHorizontal Hold Down Clamp
- Spindle Assembly225208-M
- Spindle Included?No
- Standard MaterialSteel
