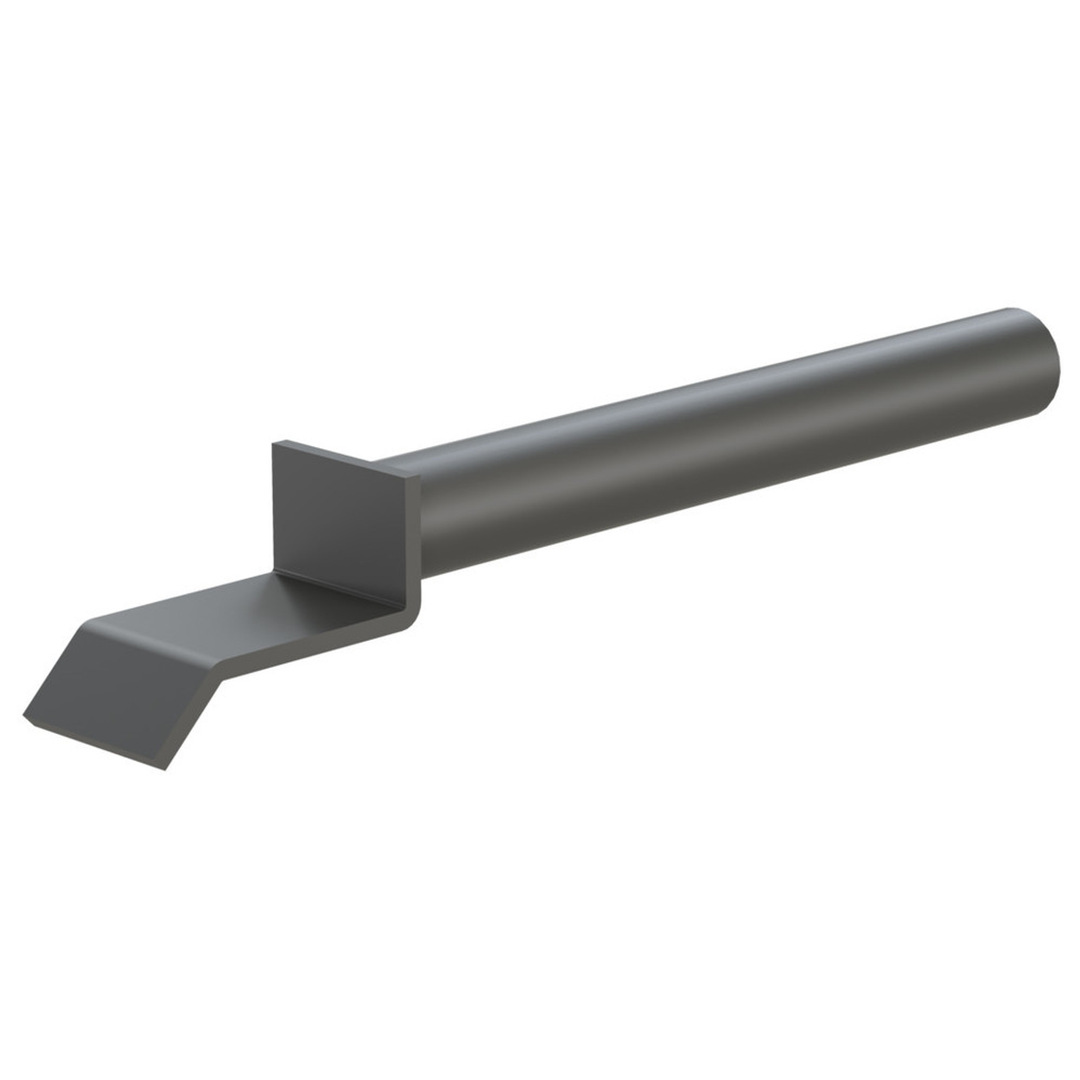

STEEL, LIGHTWEIGHT TOOLING NEST GUIDES FOR PART PLACEMENT
Unit View
Dimensions / Applications
- Length (in)7.87
- Weight (lb)0.95
Technical Details
- Maximum Static Clamp Load (ft lb)111
- Supplied?No
- Tube Size25 mm
Product Information
- BrandDESTACO
- Product TypeNest Guide
- Spindle Included?No
