Manual Clamping
Destaco’s 5150 Series heavy-duty, straight line action clamps with flange base feature reverse action, hardened steel pivot pins and bushings, and square plunger that provides positive radial location.

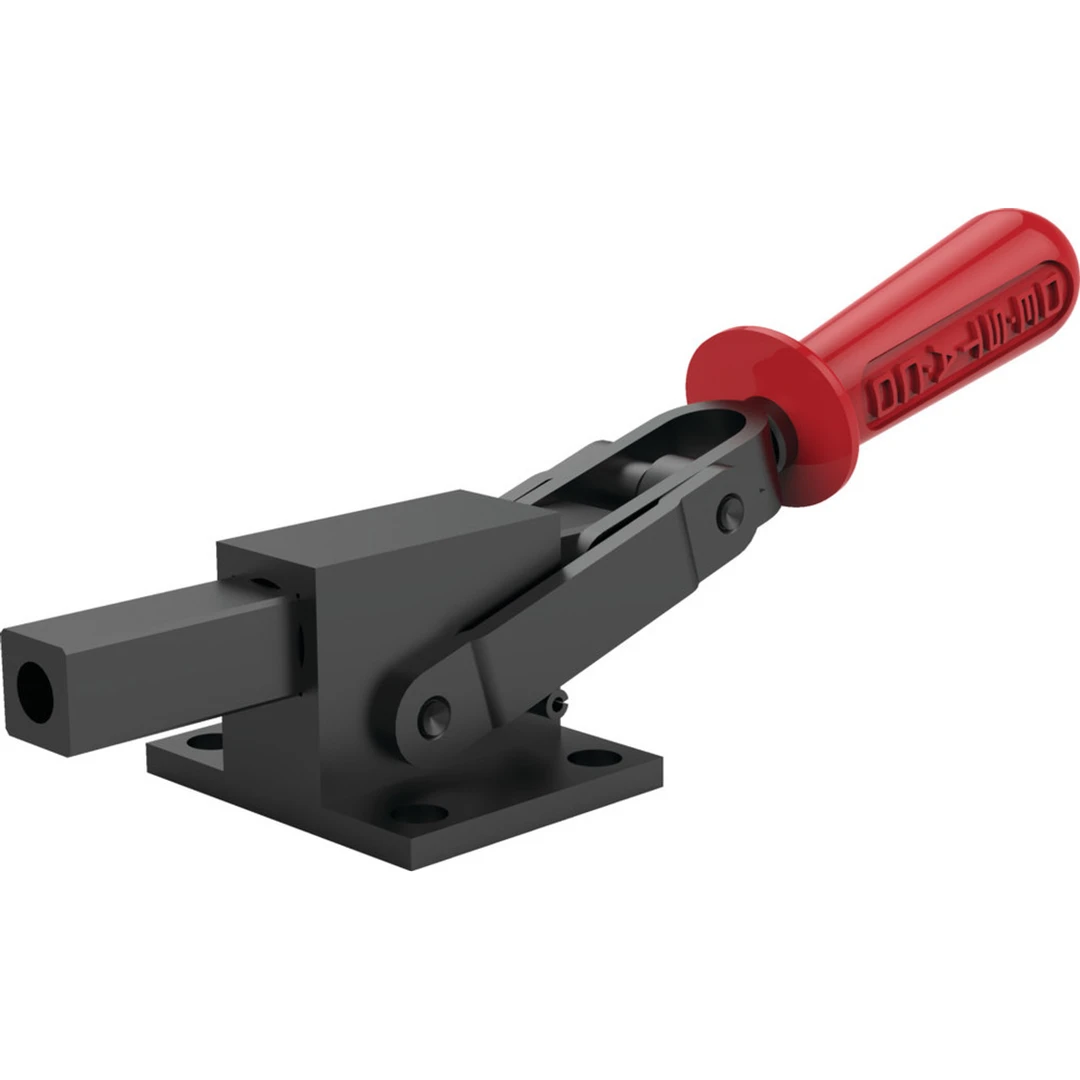

5150-M

Straight-line action clamp
  • Hardened square plunger
  • Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone
  • Hardened steel pivot pins and bushings for long life
  • Black oxide finish
Visit Product Series:
CAD

Product Details Unit View:
Plunger Travel (in) 1.91
Plunger Height (in) 1.38
Weight (lb) 3
Maximum Holding Capacity (lbf) 5800
Plunger Height (mm) 35
Plunger Travel (mm) 48.4
Weight (kg) 1.36
Imperial or Metric Product Metric
Maxmum Holding Capacity (N) 25800
Application - Machining Poor/Low
Spindle Included? No
Plunger Thread M12
Application - Closures Poor/Low
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Type Heavy Duty
Toggle Lock Plus No
Product Function Clamping
Application - Welding Excellent/High
Application - Wood-Working Poor/Low
Application - Checking Fixtures Fair/Medium
Base Mounting Style Flange
Product Series 5000
PublishedDate 1727963480000
Handle Opening (Degrees) 125
Spindle (Recommended) 220203-M
Application - Food Processing Not Recommended
Plunger Square
Standard Material Steel
Application - Assembly Excellent/High
Product Accessories
220203-M
Spindel
